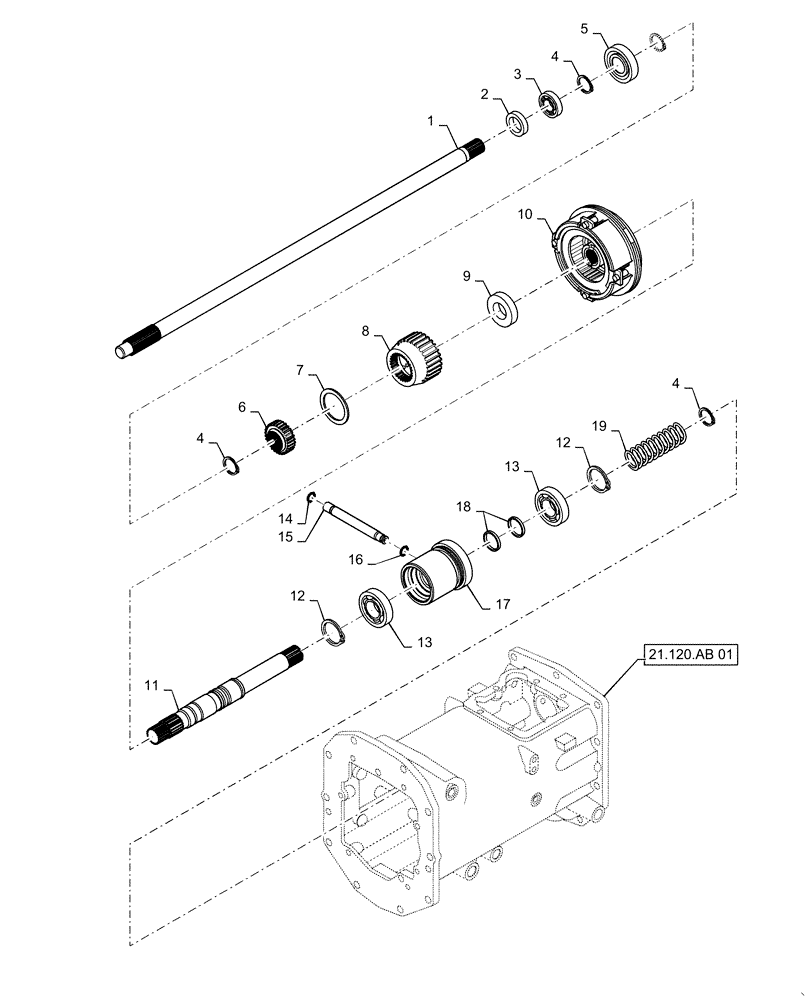

Запчасти Case IH FARMALL 35C (31.110.AO[01]) - PTO SHAFT, MECH, FARMALL 30C, 35C (31) - IMPLEMENT POWER TAKE OFF

1

MT40266228

SHAFT

Main, PTO

1шт.

2

MT40012689

SEAL

Oil

1шт.

3

MT40012722

BALL BEARING

1шт.

4

MT40029265

SNAP RING,M20

3шт.

5

MT40012702

BALL BEARING

1шт.

6

MT40010037

JOINT,39.7mm OD x 17.5mm ID x 16L

Hydr Clutch Hub

1шт.

7

MT40029277

SNAP RING,M40

1шт.

8

MT40009734

HUB,59.667mm OD x 38.5mm ID x 41.3L

PTO Hydr Clutch

1шт.

9

MT40012696

BALL BEARING

1шт.

10

MT40007685

CLUTCH

Assy, PTO

1шт.

11

MT40009655

SHAFT,25mm OD x 252L

IPTO Drive

1шт.

12

MT40029271

SNAP RING,M25

2шт.

13

MT40012697

BALL BEARING

2шт.

14

MT40029238

O-RING,1.50mm Thk x 7.50mm ID

1шт.

15

MT40009793

PIPE,9.8mm OD x 3.5mm ID x 104L

Hydr Clutch Input

1шт.

16

MT40029237

O-RING,1.50mm Thk x 6.50mm ID

1шт.

17

MT40009742

SLEEVE,62mm OD x 25.14mm ID x 61.3L

Hydr Circuit

1шт.

18

MT40258413

OIL SEAL,25.14mm OD x 2.5mm Thk

2шт.

19

MT40034586

SPRING

1шт.
