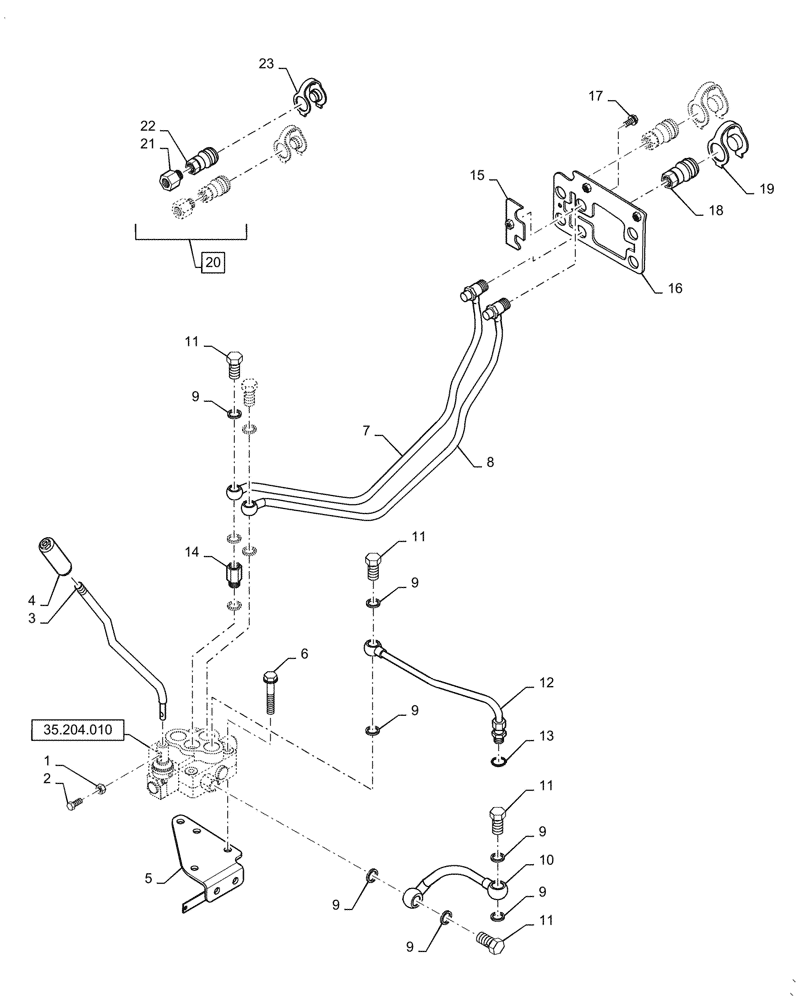

Запчасти Case IH FARMALL 35C (35.300.050) - REMOTE CONTROL LINES (35) - HYDRAULIC SYSTEMS

1

MT40028769

NUT,Hex, M10 x 1.5

1шт.

2

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

1шт.

3

MT40337034

LEVER,56.5mm x 200mm x 77mm

Remote Control Valve

1шт.

4

MT40008403

GRIP

Aux Lever

1шт.

5

MT40011429

BRACKET

Remote Control Valve

1шт.

6

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

3шт.

7

MT40011547

PIPE,12mm OD x 1mm Thk

Remote Control Valve Dn

1шт.

8

MT40011548

PIPE,12mm OD x 1mm Thk

Remote Control Valve Up

1шт.

9

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

Bonded

11шт.

10

MT40011370

PIPE,12mm OD x 1mm Thk

Remote Control Valve Press Out

1шт.

11

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

Union

5шт.

12

MT40011372

PIPE,12mm OD x 1mm Thk

Remote Control Valve Drain

1шт.

13

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

1шт.

14

MT40010251

HYD CONNECTOR,22mm ID x 3/8” OD x 11X40L

Union

1шт.

15

MT40226639

BRACKET

Remote Control

1шт.

16

MT40011483

BRACKET,2.3mm Thk

Remote Control Pipe

1шт.

17

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

1шт.

18

MT40230238

COUPLING, QUICK, FEM,1/2"

2шт.

19

MT40234922

DUST CAP

2шт.

20

MT40233020

COUPLING

Assy Incl 21 - 22

4шт.

21

MT40009174

ADAPTER,1/2" - 3/8"

1шт.

22

MT40233022

COUPLING,3/8"

1шт.

23

MT40290322

CAP

2шт.
