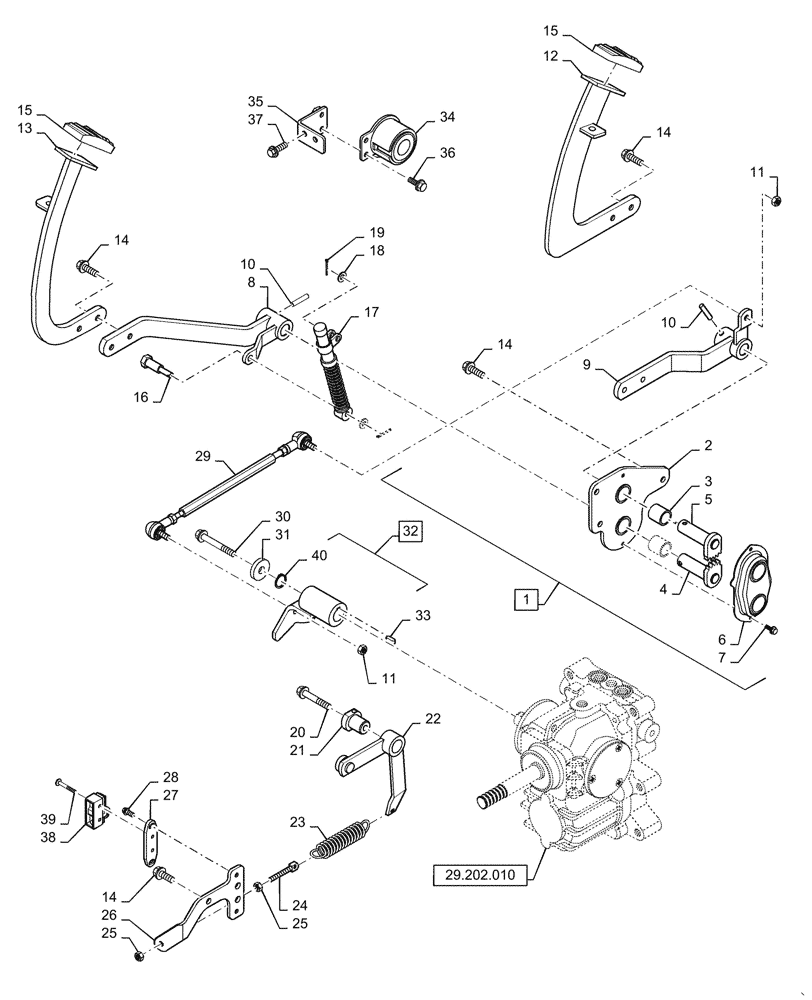

Запчасти Case IH FARMALL 35C (29.200.020) - HYDROSTATIC TRANSMISSION, CONTROLS (29) - HYDROSTATIC DRIVE

1

MT40286605

CONTROLLER

Assy, HST, Incl 2 - 10

1шт.

2

MT40011440

PLATE

1шт.

3

MT40012935

BUSHING

2шт.

4

MT40012477

SHAFT

A

1шт.

5

MT40012478

SHAFT

B

1шт.

6

MT40008311

COVER,1mm Thk

Dust

1шт.

7

MT40028909

BOLT,Hex, M6 x 1 x 12mm

2шт.

8

MT40011443

ARM

Pedal

1шт.

9

MT40286604

ARM

Pedal

1шт.

10

MT40029173

PIN,6mm OD x 36mm L

Spring

2шт.

11

MT40027836

NUT

2шт.

12

MT40281835

PEDAL

Forward, ROPS

1шт.

13

MT40281836

PEDAL

Reverse, ROPS

1шт.

14

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

8шт.

15

MT40232475

RUBBER PEDAL PAD

2шт.

16

MT40012784

PIN,M10 x 1.25

1шт.

17

MT40279235

DAMPER

HST

1шт.

18

MT40028157

WASHER,8.40mm ID x 15.50mm OD x 1.60mm Thk

Plain

2шт.

19

MT40029119

PIN,20mm OD x 20mm L

2шт.

20

MT40028954

BOLT,M10 x 1.25 x 55mm

1шт.

21

MT40009880

SHAFT,25.5mm L

1шт.

22

MT40013018

ARM

Sub Assy, Neutral

1шт.

23

MT40012894

SPRING,2.9mm ID x 22mm OD x 110mm L

1шт.

24

MT40012133

BOLT,8mm OD

Adjust

1шт.

25

MT40029040

NUT,Hex, M8 x 1.25

2шт.

26

MT40011300

BRACKET,4.5mm Thk

Spring

1шт.

27

MT40009454

PLATE,4.5mm Thk

1шт.

28

MT40028909

BOLT,Hex, M6 x 1 x 12mm

2шт.

29

MT40297693

ROD

Assy

1шт.

30

MT40028956

BOLT,Hex, M10 x 1.25 x 70mm

1шт.

31

MT40012971

WASHER

1шт.

32

MT40012242

CAM

HST, Incl 40

1шт.

33

MT40097739

KEY,20mm L

Sunk

1шт.

34

MT40181852

MAGNET

Assy, Cruise

1шт.

35

MT40282536

BRACKET

Cruise Magnet

1шт.

36

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

2шт.

37

MT40028973

BOLT,Hex, M8 x 1.25 x 25mm

2шт.

38

MT40007150

MFD SWITCH,125VAC/12A

Neutral, Micro

1шт.

39

MT40028710

SCREW,M4 x 0.7 x 35mm

2шт.

40

MT40150738

SNAP RING,M20

1шт.
