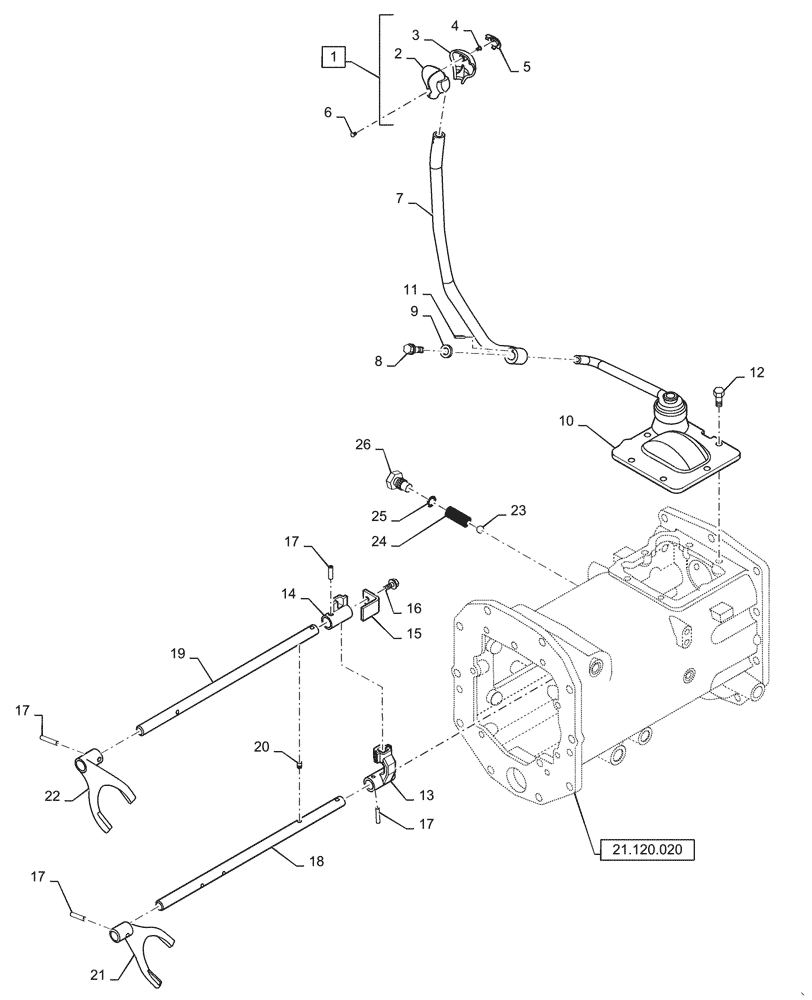

Запчасти Case IH FARMALL 35C (21.140.060) - SHIFT LEVER & FORK, MAIN GEAR, MECHANICAL TRANSMISSION (21) - TRANSMISSION

1

MT40194081

KNOB

Assy Mechanical, Incl 2 - 5

1шт.

2

MT40030820

KNOB

Rear Mechanical

1шт.

3

MT40030816

KNOB

Front

1шт.

4

MT40189878

SCREW,M4 x 1.41 x 10mm

Tpg Crs

1шт.

5

MT40030818

CAP

Cap

1шт.

6

MT40071093

SCREW,M4 x 0.7 x 10mm

Cross Countersunk

1шт.

7

MT40290465

LEVER

Main Shift Handle

1шт.

8

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

1шт.

9

MT40028196

WASHER,8.4mm ID x 26mm OD x 2.5mm Thk

Plain

1шт.

10

MT40282086

LEVER

Assy, Lower

1шт.

11

MT40097739

KEY,20mm L

Sunk

1шт.

12

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

5шт.

13

MT40305214

ADAPTER

Main Shift, Third and Fourth

1шт.

14

MT40009574

ADAPTER

Main Shift, First and Second

1шт.

15

MT40011901

HOLDER

Adapter

1шт.

16

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

17

MT40270937

PIN,6mm OD x 24mm L

4шт.

18

MT40009242

RAIL ASSY.,16mm OD x 442mm L

Main Shift, Third and Fourth

1шт.

19

MT40009075

RAIL ASSY.,16mm OD x 447mm L

Main Shift, First and Second

1шт.

20

MT40009848

PIN

1шт.

21

MT40009573

FORK

Main Shift, Third and Fourth

1шт.

22

MT40009572

FORK

Main Shift, First and Second

1шт.

23

MT40010339

BALL

Shift Fork

2шт.

24

MT40011943

SPRING,7.2mm OD x 22mm L

2шт.

25

MT40029196

O-RING,2.4mm Thk x 9.8mm ID

2шт.

26

MT40009498

BOLT

Rail

2шт.
