(90.150.030) - PEDAL FRAME, HYDROSTATIC TRANSMISSION

Запчасти Case IH FARMALL 35C (90.150.030) - PEDAL FRAME, HYDROSTATIC TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

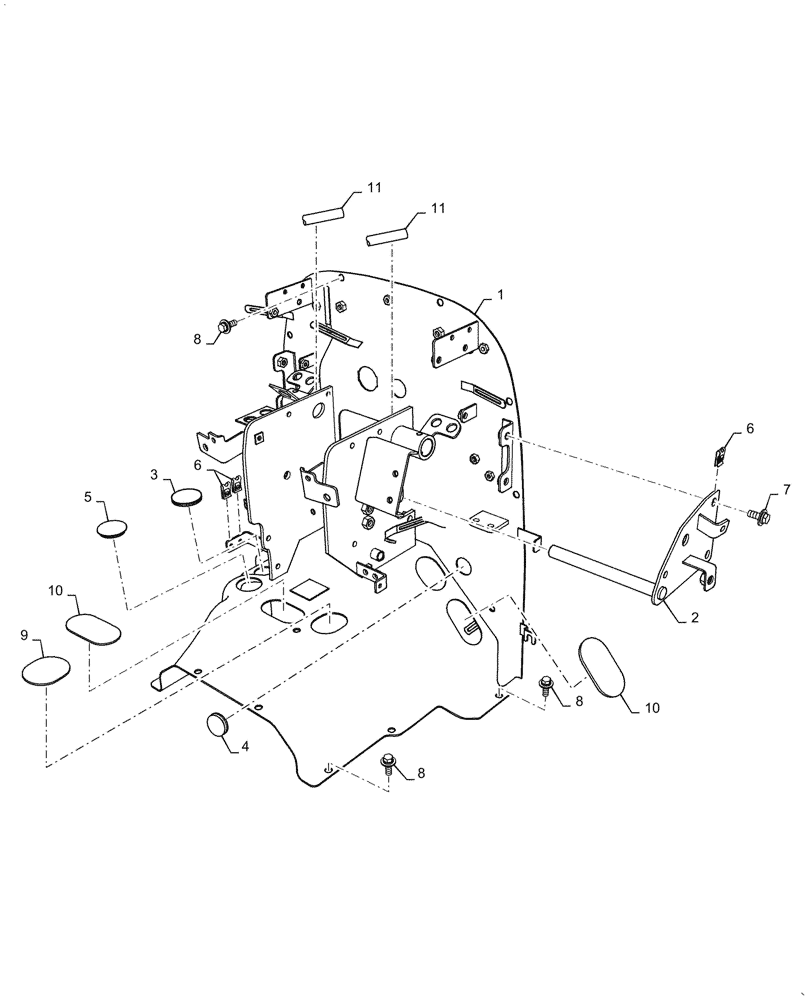

Схема запчастей Case IH FARMALL 35C - (90.150.030) - PEDAL FRAME, HYDROSTATIC TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
5
2
10
11
3
8
8
7
6
6
4
1
9
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40279120

PEDAL

Pedal, ROPS

1шт.

2

MT40268234

STOP

Brake Pedal

1шт.

3

MT40007472

GROMMET,32mm OD x 2.5mm Thk

Clutch Rod

1шт.

4

MT40007409

GROMMET,23mm ID x 29mm OD x 3.5mm Thk

Dust

2шт.

5

MT40007363

GROMMET,38mm OD x 2.5mm Thk

Fwd - Rvs Shaft

1шт.

6

MT40012278

PLATE

Lock

7шт.

7

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

8

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

14шт.

9

MT40278915

COVER

Dummy

1шт.

10

MT40278918

COVER

Dummy

2шт.

11

MT40276738

HOSE

Weather Strip

2шт.
