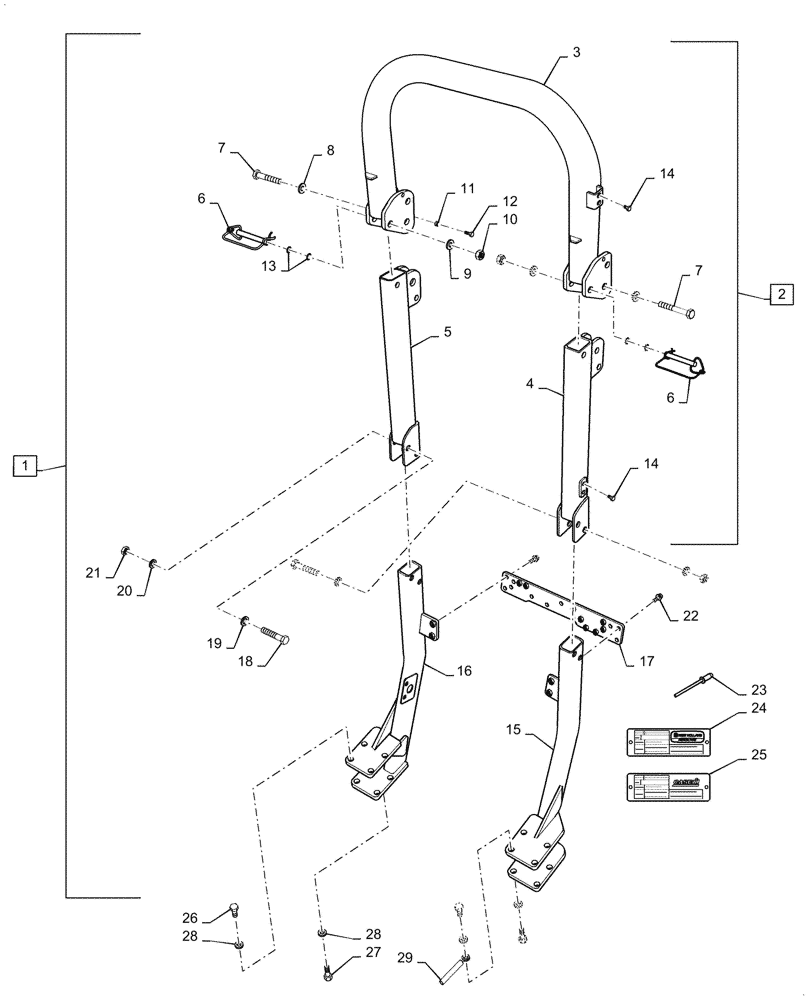

Запчасти Case IH FARMALL 35C (90.114.010) - FOLDABLE ROPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT20137517

ROPS

Assy Incl 2-25

1шт.

2

MT40278128

ROPS

Assy Rear Upper, Incl 3-14

1шт.

3

MT40278129

ROPS

Rear Upper

1шт.

4

MT40278130

ROPS

LH, Rear Mid

1шт.

5

MT40285860

ROPS

RH, Rear Mid

1шт.

6

MT40233112

PIN,14mm ID x 80mm L

2шт.

7

MT40029407

BOLT,Hex, M14 x 2 x 90mm

2шт.

8

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

2шт.

9

MT40028160

WASHER,15mm ID x 24mm OD x 2.5mm Thk

2шт.

10

MT40028727

NUT,Hex, M14 x 2

2шт.

11

MT40028719

NUT,Hex, M6 x 1.0

2шт.

12

MT40029491

BOLT,Hex, M6 x 1.0 x 20mm

2шт.

13

MT40029201

O-RING,2.4mm Thk x 13.8mm ID

5шт.

14

MT40266803

PLUG,M8

6шт.

15

MT40282026

ROPS

LH, Lower

1шт.

16

MT40282025

ROPS

RH, Lower

1шт.

17

MT40281963

PLATE

Connector

1шт.

18

MT40029407

BOLT,Hex, M14 x 2 x 90mm

4шт.

19

MT40028160

WASHER,15mm ID x 24mm OD x 2.5mm Thk

4шт.

20

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

4шт.

21

MT40028727

NUT,Hex, M14 x 2

4шт.

22

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

4шт.

23

MT40029187

RIVET,3.2mm OD x 10mm L

2шт.

24

MT40293819

PLATE

Name

1шт.

25

MT40293821

PLATE

Name

1шт.

26

MT40029397

BOLT,Hex, M14 x 2 x 40mm

8шт.

27

MT40029401

BOLT,Hex, M14 x 2 x 50mm

6шт.

28

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

14шт.

29

MT40300367

CLAMP

1шт.
