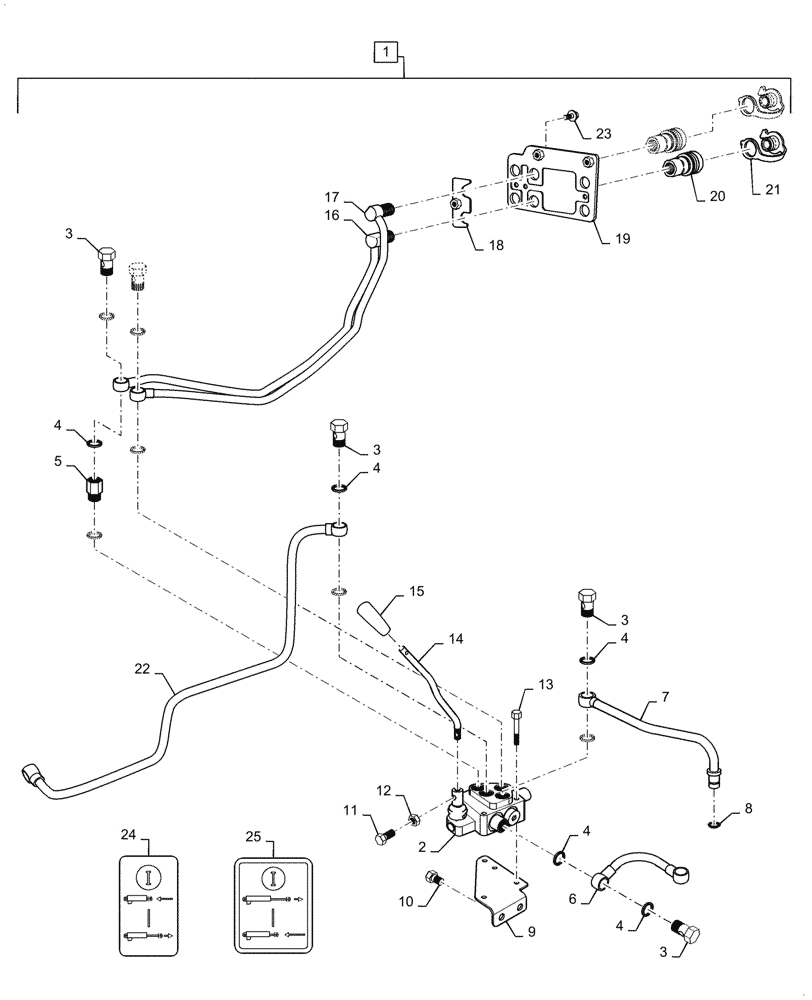

Запчасти Case IH FARMALL 35C (88.035.010[01]) - DIA KIT, REMOTE CONTROL VALVE (88) - ACCESSORIES

1

MT20140718

CONTROL VALVE

Spring Return, Kit, Incl 2 - 25

1шт.

1

MT20144546

Detent, Kit, Incl 2 - 25

REMOTE CONTROL VALVE

1шт.

2

MT40120523

REMOTE CONTROL VALVE

Spring Return

1шт.

2

MT40350720

REMOTE CONTROL VALVE

Detent

1шт.

3

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

5шт.

4

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

11шт.

5

MT40010251

HYD CONNECTOR,22mm ID x 3/8” OD x 11X40L

1шт.

6

MT40235339

PIPE

1шт.

7

MT40235340

PIPE

1шт.

8

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

1шт.

9

MT40235346

BRACKET

1шт.

10

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

2шт.

11

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

1шт.

12

MT40028769

NUT,Hex, M10 x 1.5

1шт.

13

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

3шт.

14

MT40282043

LEVER

Sprng Return

1шт.

14

MT40337034

LEVER,56.5mm x 200mm x 77mm

Detent

1шт.

15

MT40229209

GRIP

1шт.

16

MT40235343

PIPE

2/D

1шт.

17

MT40235344

PIPE

2/U

1шт.

18

MT40235345

BRACKET

1шт.

19

MT40235347

BRACKET

1шт.

20

MT40230238

COUPLING, QUICK, FEM,1/2"

2шт.

21

MT40234922

DUST CAP

Black

2шт.

22

MT40329003

PIPE

1шт.

23

MT40029009

BOLT,Hex, M8 x 1.25 x 30mm

2шт.

24

MT40256190

DECAL

Aux Lever

1шт.

25

MT40256191

DECAL

Aux Control

1шт.
