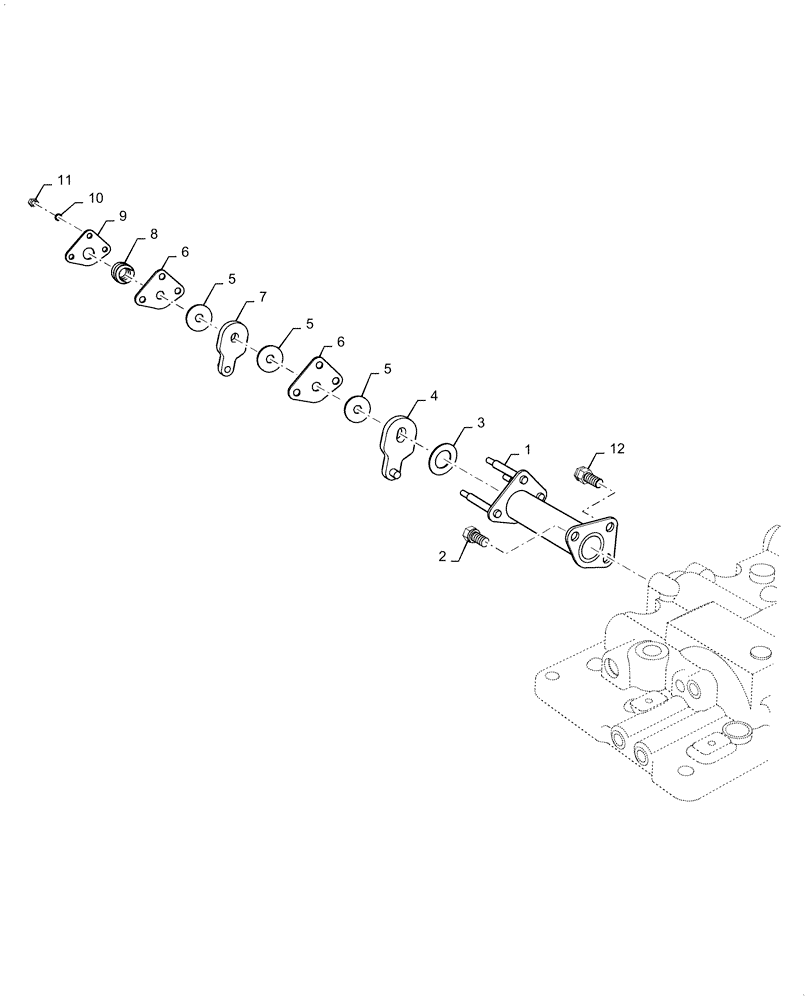

Запчасти Case IH FARMALL 35C (37.108.AE[01]) - HYDRAULIC CONTROL LEVER, W/DRAFT, FARMALL 35C, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT40297719

BRACKET

Hydraulic Lever

1шт.

2

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

2шт.

3

MT40006943

PLATE,21mm ID x 40mm OD x 2mm Thk

1шт.

4

MT40255618

ARM

Draft Cable

1шт.

5

MT40006942

PLATE,13mm ID x 40mm OD x 2mm Thk

3шт.

6

MT40012316

PLATE,3.2mm Thk

Locking

2шт.

7

MT40255619

ARM

Position Cable

1шт.

8

MT40012375

SPRING,27mm OD x 23mm L

1шт.

9

MT40011868

COVER,3.2mm Thk

Spring

1шт.

10

MT40029543

WASHER,6.10mm ID x 12.20mm OD x 1.50mm Thk

Spring

3шт.

11

MT40028763

NUT,M6 x 1.0

3шт.

12

MT40293866

BOLT,M10 x 1.25 x 20mm

Draft Spring

1шт.
