(35.359.AB[01]) - FRONT LOADER CONTROL VALVE ASSY, FARMALL 35C, CAB

Запчасти Case IH FARMALL 35C (35.359.AB[01]) - FRONT LOADER CONTROL VALVE ASSY, FARMALL 35C, CAB (35) - HYDRAULIC SYSTEMS

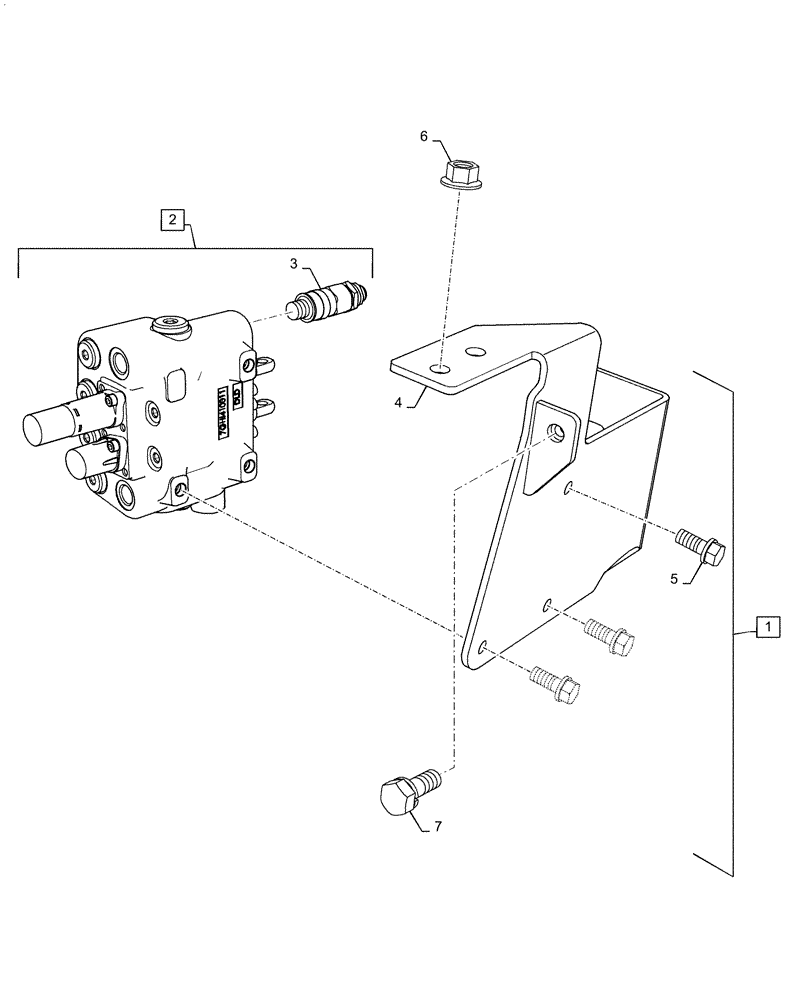

Схема запчастей Case IH FARMALL 35C - (35.359.AB[01]) - FRONT LOADER CONTROL VALVE ASSY, FARMALL 35C, CAB (35) - HYDRAULIC SYSTEMS
5
4
2
6
7
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40268325

VALVE BODY

Assy, Loader, Incl 2 - 5

1шт.

2

MT40267762

VALVE

Loader Assy, Incl 3

1шт.

3

MT40304910

VALVE

Relief

1шт.

4

MT40255606

BRACKET

3шт.

5

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

6

MT40029079

FLANGE NUT,M10 x 1.25

2шт.

7

MT40028937

BOLT,Hex, M10 x 1.5 x 25mm

1шт.
