(35.204.BJ[01]) - HYDRAULIC LINES, FARMALL 35C, CAB

Запчасти Case IH FARMALL 35C (35.204.BJ[01]) - HYDRAULIC LINES, FARMALL 35C, CAB (35) - HYDRAULIC SYSTEMS

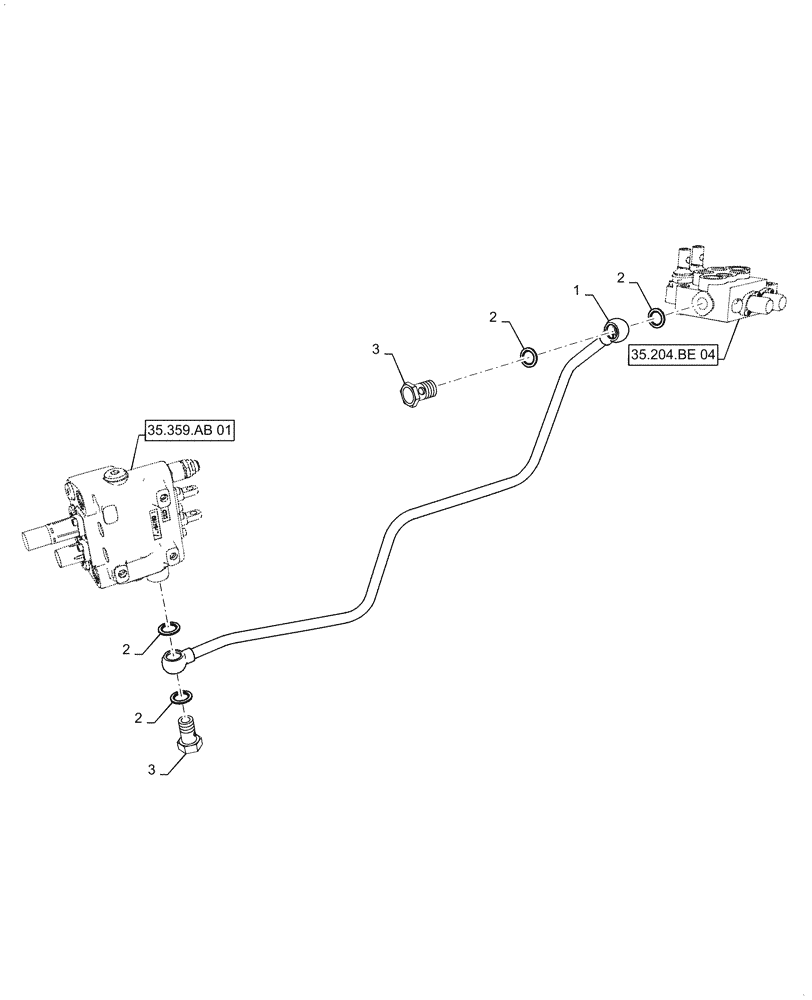

Схема запчастей Case IH FARMALL 35C - (35.204.BJ[01]) - HYDRAULIC LINES, FARMALL 35C, CAB (35) - HYDRAULIC SYSTEMS
2
3
2
1
35.204.be 04
2
3
35.359.ab 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40269350

PIPE

Loader Valve, Aux, M/Pressure

1шт.

2

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

Bonded

4шт.

3

MT40010250

BOLT,Union 1/2" x 36mm L

Union

2шт.

Выбрано товаров: 3
