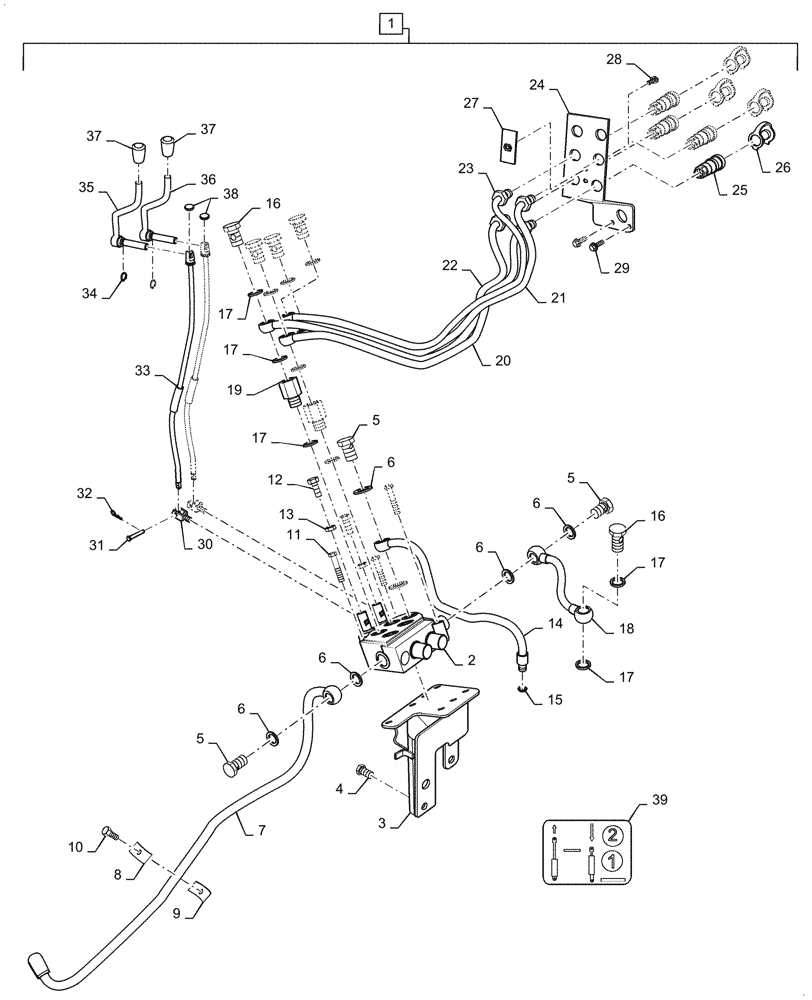

Запчасти Case IH FARMALL 35C (35.204.BE[14]) - REMOTE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

MT20140905

REMOTE CONTROL

Incl 2 - 39

1шт.

2

MT40280008

VALVE BODY

1шт.

3

MT40330670

BRACKET

Valve

1шт.

4

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

1шт.

5

MT40010250

BOLT,Union 1/2" x 36mm L

3шт.

6

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

6шт.

7

MT40330669

PIPE

1шт.

8

MT40012306

CLAMP,2.3mm Thk

Pipe

1шт.

9

MT40012307

PIPE CLAMP,2.3mm Thk

1шт.

10

MT40028968

BOLT,Hex, M6 x 1 x 30mm

1шт.

11

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

3шт.

12

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

2шт.

13

MT40028769

NUT,Hex, M10 x 1.5

2шт.

14

MT40330668

PIPE

1шт.

15

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

1шт.

16

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

5шт.

17

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

14шт.

18

MT40330671

PIPE

Pressure

1шт.

19

MT40010251

HYD CONNECTOR,22mm ID x 3/8” OD x 11X40L

2шт.

20

MT40330660

PIPE

1st - L

1шт.

21

MT40330667

PIPE

2nd - L

1шт.

22

MT40330664

PIPE

1st - R

1шт.

23

MT40330666

PIPE

2nd - R

1шт.

24

MT40330672

BRACKET

1шт.

25

MT40230238

COUPLING, QUICK, FEM,1/2"

4шт.

26

MT40290328

CAP

4шт.

27

MT40235530

BRACKET

1шт.

28

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

1шт.

29

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

30

MT40275674

CLEVIS

2шт.

31

MT40032262

PIN,1mm OD x 20mm L

2шт.

32

MT40029130

PIN,M6

2шт.

33

MT40276074

ROD

Assy

2шт.

34

MT40056836

RING,M10

Snap

2шт.

35

MT40254770

LEVER

Remote

1шт.

36

MT40254771

LEVER

2nd Remote

1шт.

37

MT40330294

REMOTE CONTROL VALVE

2шт.

38

MT40279018

CAP

Remote Lever

1шт.

39

MT40256192

DECAL

AUX Control

1шт.
