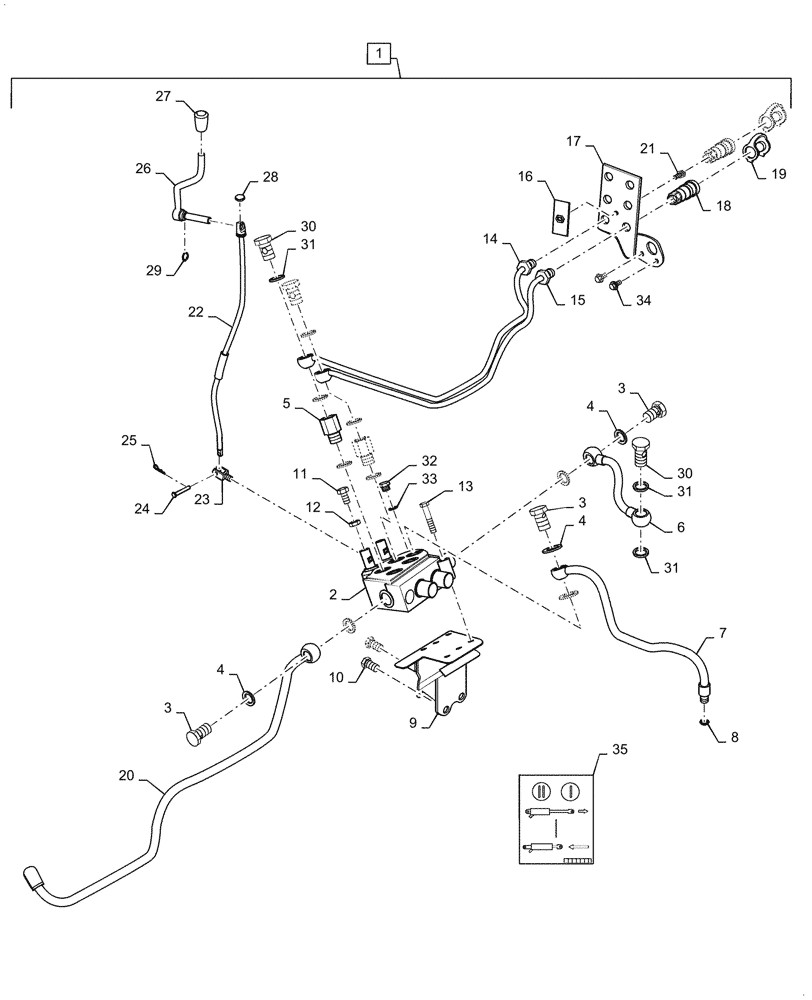

Запчасти Case IH FARMALL 35C (35.204.BE[13]) - REMOTE CONTROL VALVE, SINGLE (35) - HYDRAULIC SYSTEMS

1

MT20140903

REMOTE CONTROL

2 Quick Coupler, Incl 2 - 35

1шт.

2

MT40280008

VALVE BODY

1шт.

3

MT40010250

BOLT,Union 1/2" x 36mm L

3шт.

4

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

6шт.

5

MT40010251

HYD CONNECTOR,22mm ID x 3/8” OD x 11X40L

1шт.

6

MT40330663

PIPE

Pressure

1шт.

7

MT40330665

PIPE

Drain

1шт.

8

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

1шт.

9

MT40330659

BRACKET

Reaction

1шт.

10

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

2шт.

11

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

1шт.

12

MT40028769

NUT,Hex, M10 x 1.5

1шт.

13

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

3шт.

14

MT40330664

PIPE

Remote, RH

1шт.

15

MT40330660

PIPE

Remote, LH

1шт.

16

MT40235530

BRACKET

Aux. Pipe

1шт.

17

MT40330662

BRACKET

Remote Pipe

1шт.

18

MT40230238

COUPLING, QUICK, FEM,1/2"

Quick

1шт.

19

MT40234922

DUST CAP

Coupler

2шт.

20

MT40330661

PIPE

Aux.

2шт.

21

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

1шт.

22

MT40276074

ROD

Lever

1шт.

23

MT40275674

CLEVIS

Valve Lever

1шт.

24

MT40032262

PIN,1mm OD x 20mm L

1шт.

25

MT40029130

PIN,M6

1шт.

26

MT40254770

LEVER

First Remote

1шт.

27

MT40330294

REMOTE CONTROL VALVE

Remote Lever

1шт.

28

MT40279018

CAP

Remote Lever

2шт.

29

MT40056836

RING,M10

Snap

1шт.

30

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

3шт.

31

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

7шт.

32

MT40313116

PLUG

O-Ring

2шт.

33

MT40327709

RING

Guide

2шт.

34

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

35

MT40256191

DECAL

Aux. Control

1шт.
