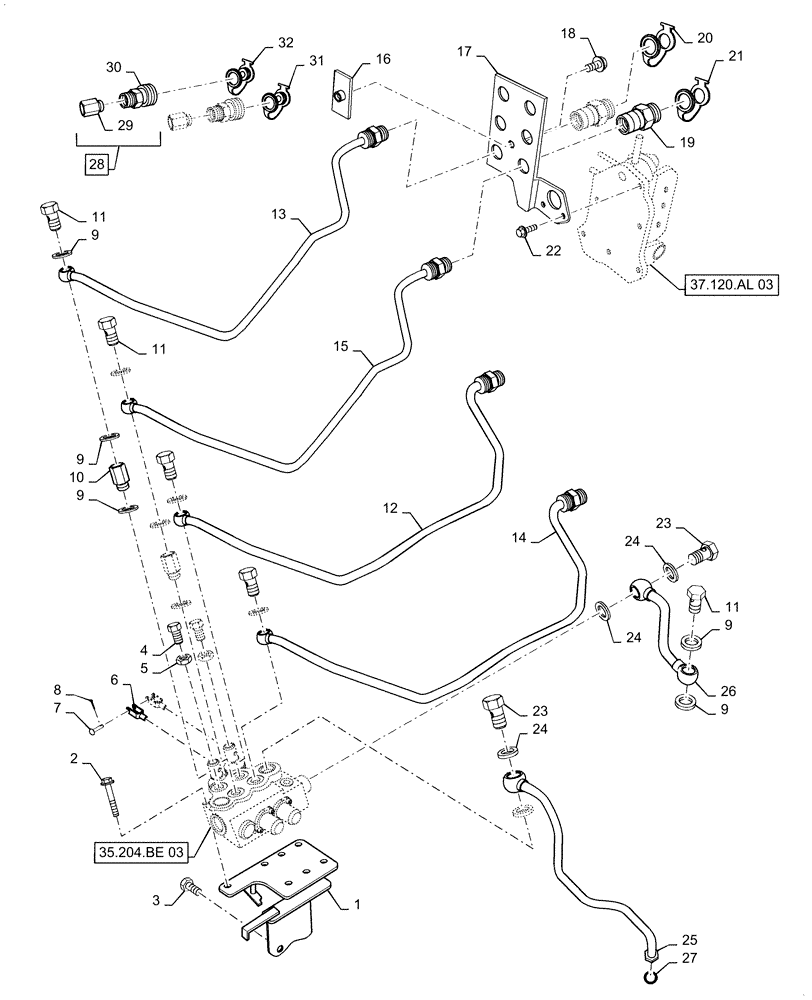

Запчасти Case IH FARMALL 35C (35.204.BE[02]) - REMOTE CONTROL VALVE, FARMALL 35C, CAB (35) - HYDRAULIC SYSTEMS

1

MT40257907

BRACKET

Remote Control Valve

1шт.

2

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

2шт.

3

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

2шт.

4

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

2шт.

5

MT40028769

NUT,Hex, M10 x 1.5

2шт.

6

MT40275674

CLEVIS

Remote Control Valve Lever

2шт.

7

MT40032262

PIN,1mm OD x 20mm L

2шт.

8

MT40029130

PIN,M6

2шт.

9

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

12шт.

10

MT40010251

HYD CONNECTOR,22mm ID x 3/8” OD x 11X40L

2шт.

11

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

5шт.

12

MT40254889

PIPE

Remote 2nd (R)

1шт.

13

MT40254887

PIPE

Remote 1st (R)

1шт.

14

MT40254888

PIPE

Remote 2nd (L)

1шт.

15

MT40254886

PIPE

Remote 1st (L)

1шт.

16

MT40011888

BRACKET

Aux/Pipe (RH)

1шт.

17

MT40257267

BRACKET

Remote Pipe

1шт.

18

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

1шт.

19

MT40230238

COUPLING, QUICK, FEM,1/2"

(1/2)

4шт.

20

MT40290327

CAP

(1/2 Blue)

2шт.

21

MT40290326

CAP

(1/2 Green)

2шт.

22

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

23

MT40010250

BOLT,Union 1/2" x 36mm L

2шт.

24

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

4шт.

25

MT40257840

PIPE

Remote Control Valve/Drain

1шт.

26

MT40257839

PIPE

Remote/Pressure

1шт.

27

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

1шт.

28

MT40233020

COUPLING

Assembly, Incl 29 - 30

4шт.

29

MT40009174

ADAPTER,1/2" - 3/8"

1шт.

30

MT40233022

COUPLING,3/8"

(3/8)

1шт.

31

MT40290324

CAP

(3/8 Blue)

2шт.

32

MT40290322

CAP

(3/8 Green)

2шт.
