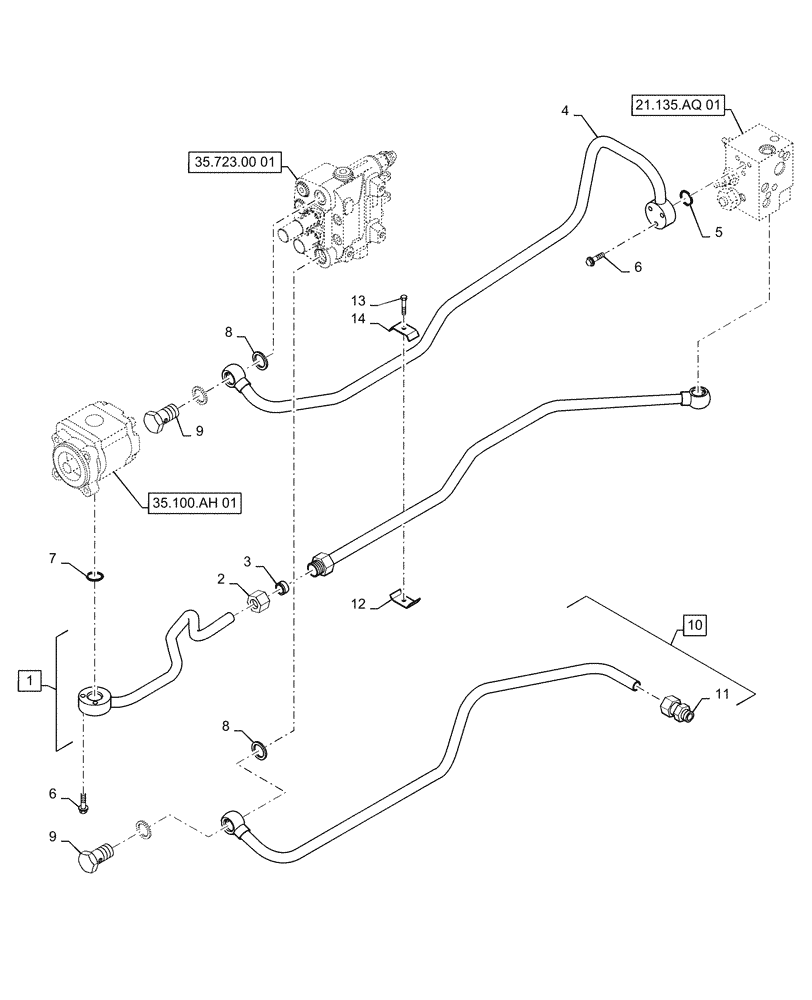

Запчасти Case IH FARMALL 35C (35.100.00[01]) - HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

MT40269088

PIPE

Incl 2 - 3

1шт.

2

MT40269072

NUT

1шт.

3

MT40269071

SLEEVE

1шт.

4

MT40270935

PIPE

1шт.

5

MT40029204

O-RING,2.4mm Thk x 15.8mm OD

1шт.

6

MT40028913

BOLT,M6 x 1 x30mm L

6шт.

7

MT40029206

O-RING,2.40mm Thk x 17.80mm ID

1шт.

8

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

4шт.

9

MT40010250

BOLT,Union 1/2" x 36mm L

2шт.

10

MT40257903

PIPE

Incl 11

1шт.

11

MT40010153

JOINT

1шт.

12

MT40028968

BOLT,Hex, M6 x 1 x 30mm

2шт.

13

MT40012306

CLAMP,2.3mm Thk

2шт.

14

MT40012307

PIPE CLAMP,2.3mm Thk

2шт.
