(90.118.CD) - TRANSMISSION MOUNTING PARTS

Запчасти Case IH FARMALL 35C (90.118.CD) - TRANSMISSION MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

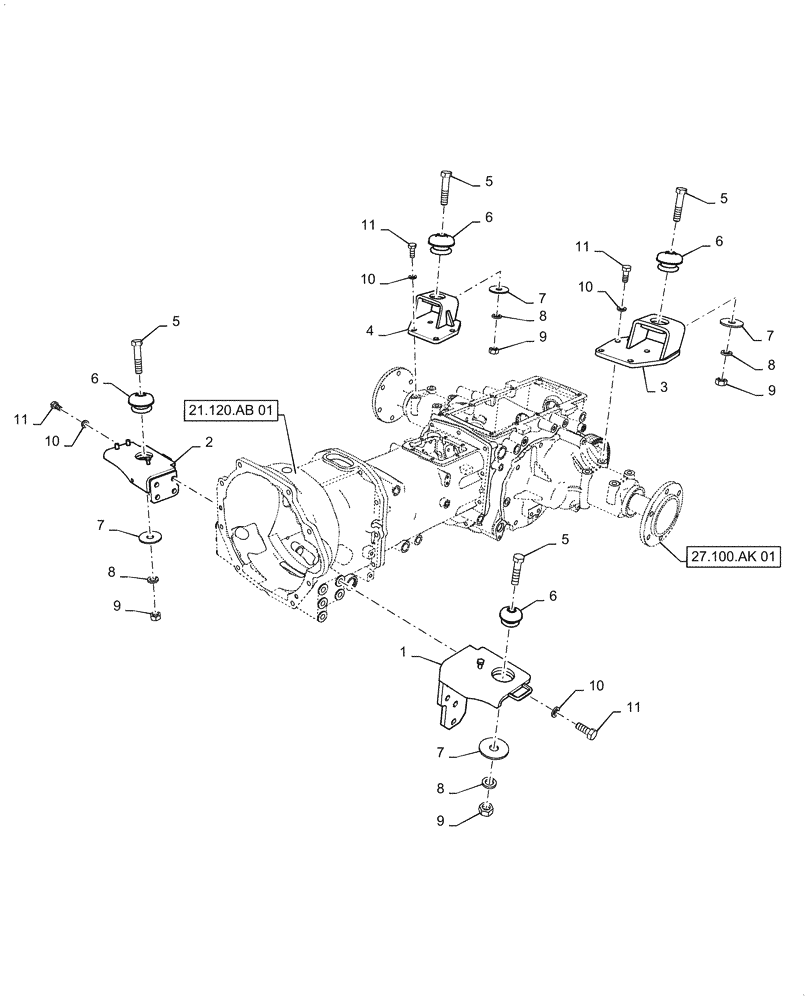

Схема запчастей Case IH FARMALL 35C - (90.118.CD) - TRANSMISSION MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
27.100.ak 01
7
10
11
6
9
7
8
6
6
6
9
8
9
5
5
10
9
3
8
11
4
1
5
2
5
10
7
8
10
11
11
7
21.120.ab 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40254942

MOUNT

LH, Front

1шт.

2

MT40254944

MOUNT

RH, Front

1шт.

3

MT40254080

BRACKET

LH, Rear

1шт.

4

MT40254081

BRACKET

RH, Rear

1шт.

5

MT40078262

BOLT,M20 x 1.5 x 90mm L

M20 x 1.5

4шт.

6

MT40278344

MOUNT

4шт.

7

MT40030751

WASHER

4шт.

8

MT40029558

WASHER,20.20mm ID x 33.80mm OD x 5.10mm

4шт.

9

MT40029035

NUT,Hex, M20 x 1.5

4шт.

10

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

16шт.

11

MT40029395

BOLT,Hex, M14 x 2 x 35mm

16шт.
