(55.405.CI[01]) - ELECTRIC PANEL, SIDE CONSOLE, FARMALL 35C, CAB

Запчасти Case IH FARMALL 35C (55.405.CI[01]) - ELECTRIC PANEL, SIDE CONSOLE, FARMALL 35C, CAB (55) - ELECTRICAL SYSTEMS

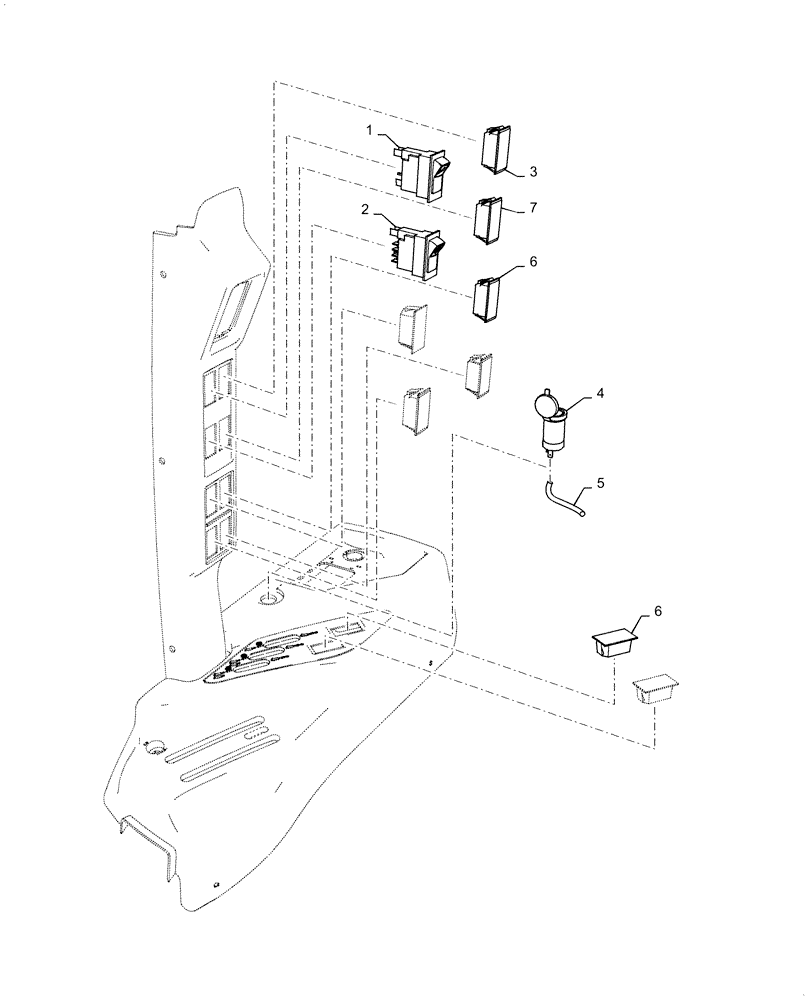

Схема запчастей Case IH FARMALL 35C - (55.405.CI[01]) - ELECTRIC PANEL, SIDE CONSOLE, FARMALL 35C, CAB (55) - ELECTRICAL SYSTEMS
6
2
4
1
5
3
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40308094

SWITCH

Work Lamp

1шт.

2

MT40308093

SWITCH

Wiper Motor

1шт.

3

MT40032534

COVER

Switch Hole, W/O Rear Work Lamp

1шт.

4

MT40221073

SOCKET

Power Outlet

1шт.

5

MT40264140

WIRE HARNESS,Power Outlet

Power Outlet

1шт.

6

MT40032534

COVER

Switch Hole

6шт.

7

MT40032534

COVER

Switch Hole, W/O Rear Wiper Motor

1шт.
