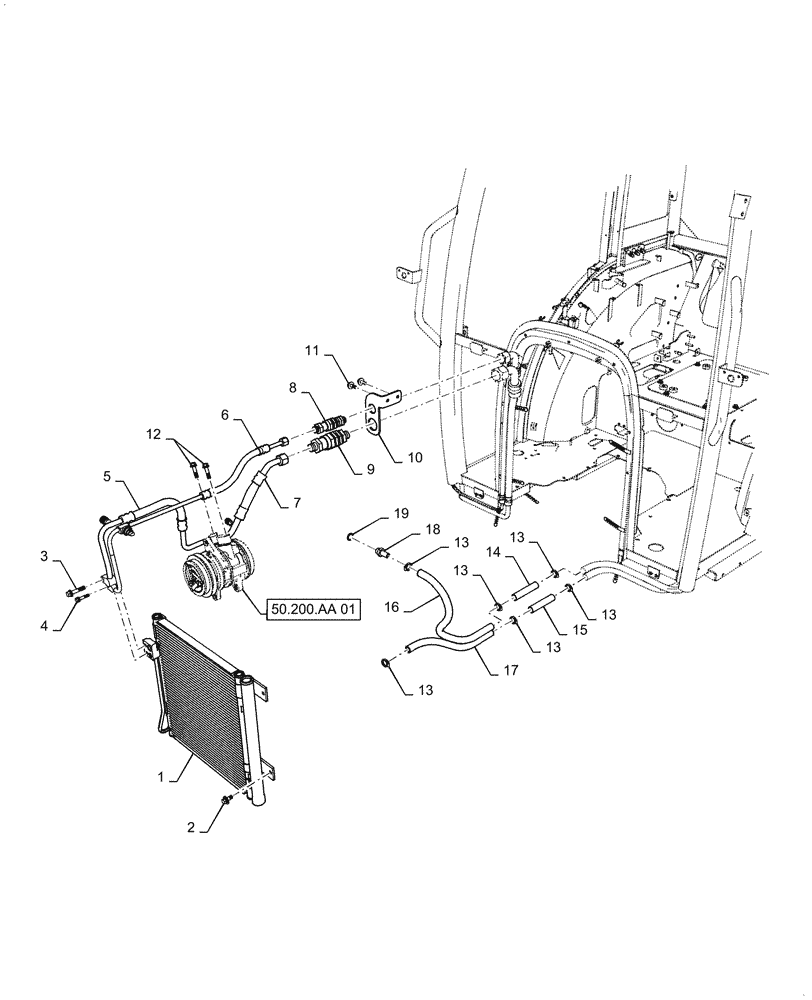

Запчасти Case IH FARMALL 35C (50.200.AB[01]) - AIR CONDITIONER LINE (50) - CAB CLIMATE CONTROL

1

MT40269701

CONDENSER,Non-Louvered

Non-louvered

1шт.

2

MT40029005

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

3

MT40094429

BOLT,Hex, M8 x 1.25 x 40mm

1шт.

4

MT40028968

BOLT,Hex, M6 x 1 x 30mm

1шт.

5

MT40269712

HOSE

Dist

1шт.

6

MT40269710

HOSE

Liquid

1шт.

7

MT40287658

HOSE

Suction

1шт.

8

MT40007639

COUPLING, QUICK, FEM

Air

1шт.

9

MT40007641

COUPLING, QUICK, FEM

Air

1шт.

10

MT40279052

BRACKET

1шт.

11

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

2шт.

12

MT40028975

BOLT,Hex, M8 x 1.25 x 35mm

2шт.

13

MT40305287

CLAMP

Hose

6шт.

14

MT40012083

HYD CONNECTOR

1шт.

15

MT40305050

HYD CONNECTOR

1шт.

16

MT40265996

HOSE

Water, High Temp

1шт.

17

MT40265995

HOSE

Water, Low Temp

1шт.

18

MT40009926

NIPPLE,M16 x 1.5

1шт.

19

MT40007810

SEAL

1шт.
