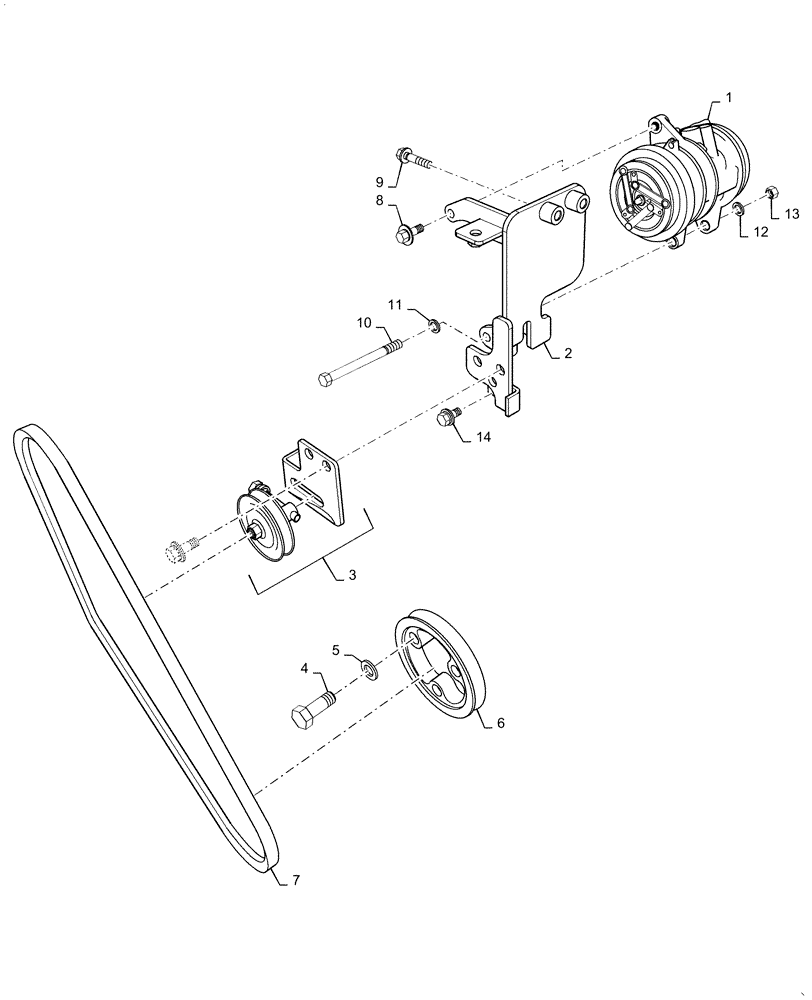

Запчасти Case IH FARMALL 35C (50.200.AA[01]) - AIR CONDITIONER, COMPRESSOR, FARMALL 35C, CAB (50) - CAB CLIMATE CONTROL

1

MT40268751

AIR COMPRESSOR

1шт.

2

MT40269708

BRACKET

Compressor

1шт.

3

MT40241548

1шт.

4

MT40028871

BOLT

3шт.

5

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

3шт.

6

MT40266446

PULLEY

Crank

1шт.

7

MT40301341

BELT

A Type

1шт.

8

MT40029007

BOLT,Hex, M8 x 1.25 x 25mm

3шт.

9

MT40094433

BOLT,M8 x 1.25 x45mm L

2шт.

10

MT40076678

BOLT,Hex, M8 x 1.25 x 100mm

2шт.

11

MT40029546

WASHER,8.20mm ID x 15.40mm OD x 2mm Thk

1шт.

12

MT40028157

WASHER,8.40mm ID x 15.50mm OD x 1.60mm Thk

1шт.

13

MT40028721

NUT,Hex, M8 x 1.25

1шт.

14

MT40094415

BOLT

1шт.
