(37.120.AF[03]) - STABILIZER, CHECK CHAIN, FARMALL 30C, 35C

Запчасти Case IH FARMALL 35C (37.120.AF[03]) - STABILIZER, CHECK CHAIN, FARMALL 30C, 35C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

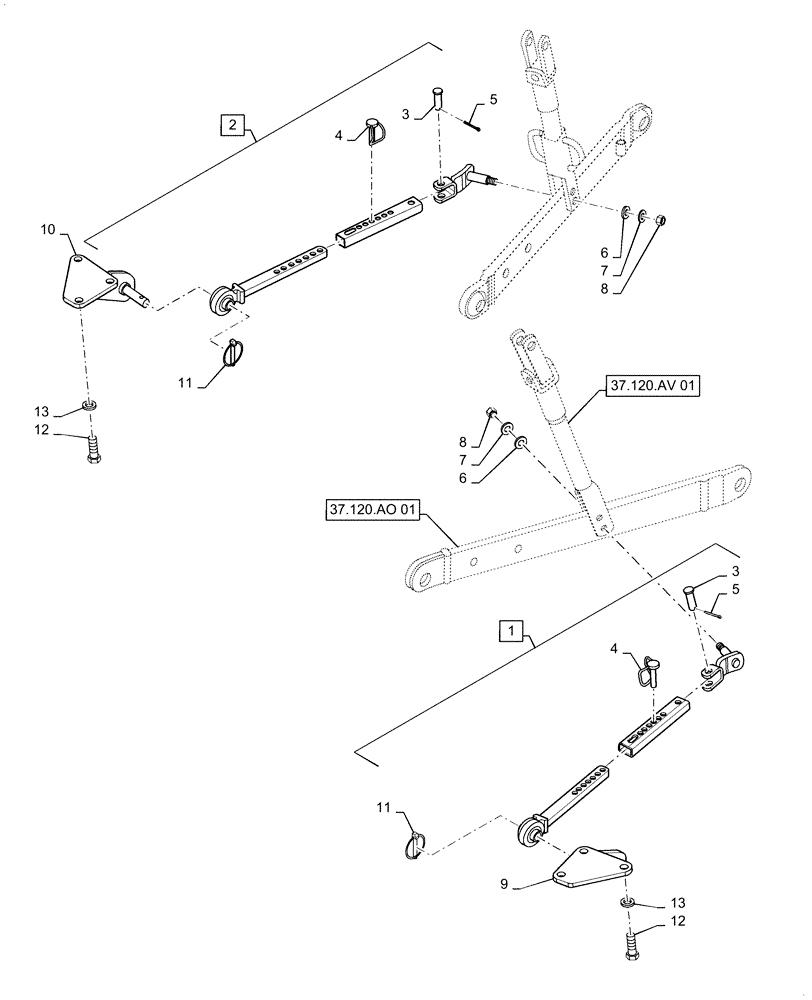

Схема запчастей Case IH FARMALL 35C - (37.120.AF[03]) - STABILIZER, CHECK CHAIN, FARMALL 30C, 35C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.120.ao 01
7
13
3
12
2
9
3
5
8
13
4
12
6
10
11
6
7
5
4
1
11
8
37.120.av 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40270996

STABILIZER

Link Assy, LH, Incl 3 - 8

1шт.

2

MT40282087

STABILIZER

Link Assy, RH, Incl 3 - 8

1шт.

3

MT40036102

PIN,17mm OD x 40mm L

2шт.

4

MT40279936

PIN

2шт.

5

MT40036103

PIN,4mm OD x 25mm L

2шт.

6

MT40028172

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

7

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

2шт.

8

MT40029049

NUT,Hex, M12 x 1.25 Pitch

2шт.

9

MT40295697

BRACKET

Stabilizer, LH

1шт.

9

MT40294714

BRACKET

Check Chain, LH

1шт.

10

MT40295698

BRACKET

Stabilizer, RH

1шт.

10

MT40294715

BRACKET

Check Chain, RH

1шт.

11

MT40012410

PIN,11mm OD x 50mm L

2шт.

12

MT40029395

BOLT,Hex, M14 x 2 x 35mm

6шт.

13

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

6шт.
