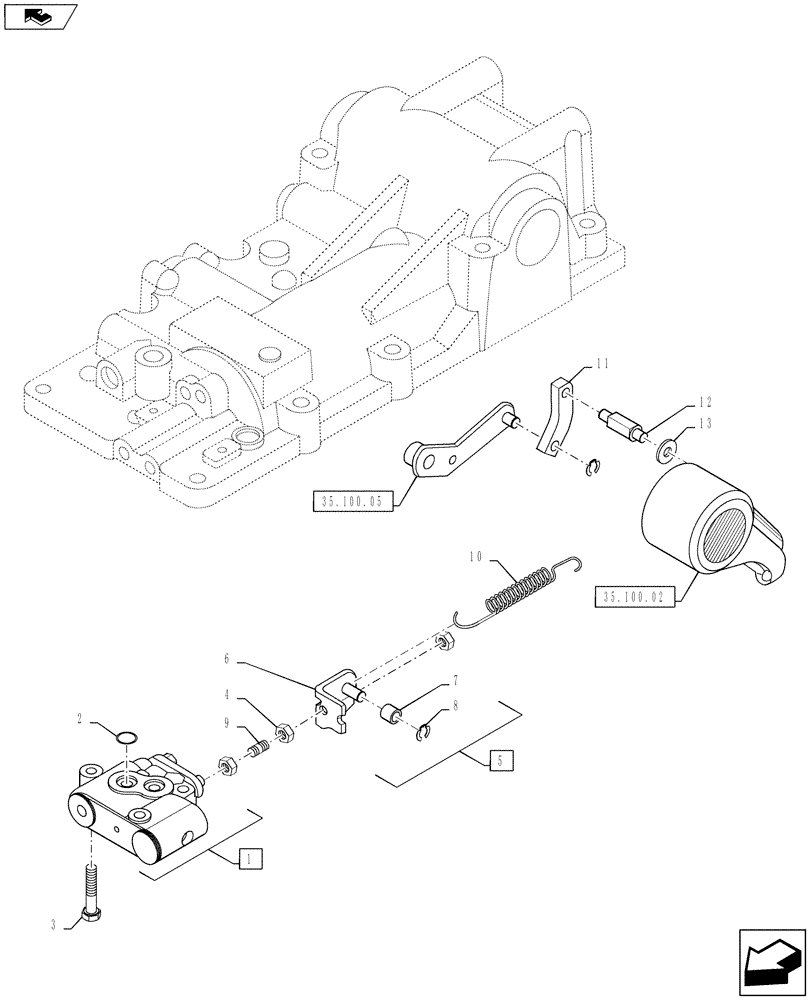

Запчасти Case IH FARMALL 35B (35.100.03) - LIFT CONTROL VALVE & LINK W/DRAFT CONTROL (35) - HYDRAULIC SYSTEMS

1

MT40250285

VALVE

Control Includes: Ref. 2

1шт.

2

MT40029205

O-RING,2.4mm Thk x 15.8mm ID

D15.8 x W2.4

2шт.

3

MT40028928

BOLT,Hex, M8 x 1.25 x 50mm

Hex, W/Washer M8 x 1.25 x 50L

3шт.

4

MT40029041

NUT,M8 x 1.25

Hex, Small M8 x 1.25

3шт.

5

MT40008109

CLEVIS

Includes: Ref. 6-8

1шт.

6

NS

NOT SERVICED

CLEVIS

1шт.

7

MT40010196

ROLLER,8mm ID x 12mm OD x 12.50mm L

O.D. 12.0 x I.D. 8.0 x 12.5L

1шт.

8

MT40029314

SNAP RING,M6

Snap

3шт.

9

MT40028584

SCREW,Skt, M8 x 1.25 x 40mm

M8 x 1.25 x 40L

1шт.

10

MT40011934

SPRING,7.50mm OD x 92mm L

D1.2 x D7.5 x 92L

1шт.

11

MT40012348

LINK,9mm Thk

9.0T

1шт.

12

MT40009491

PIN,12mm OD x 50.5mm L

Feedback Link H12 x 50.5L

1шт.

13

MT40029546

WASHER,8.20mm ID x 15.40mm OD x 2mm Thk

Spring O.D. 15.4 x I.D. 8.2 x 2T

1шт.
