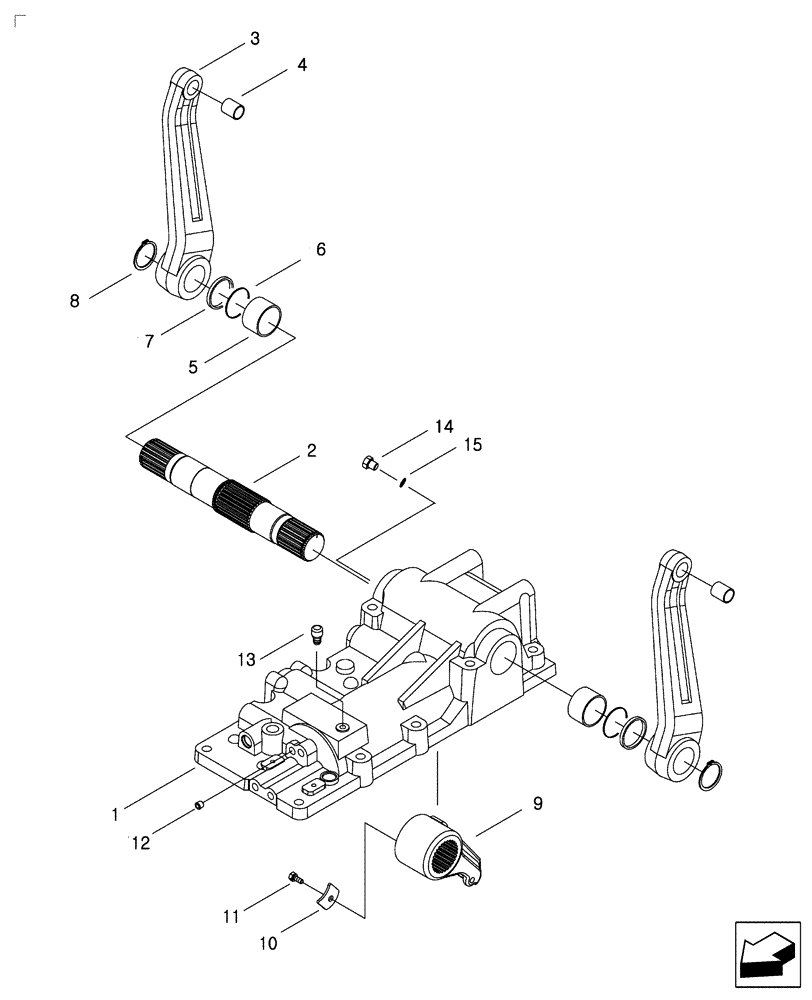

Запчасти Case IH FARMALL 35B (35.100.02) - HYDRAULIC HOUSING W/DRAFT CONTROL BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

MT40010361

HOUSING

Hydraulic

1шт.

2

MT40008963

SHAFT,303mm L

Hydraulic Lift 303L

1шт.

3

MT40009177

ARM

Lift

2шт.

4

MT40009651

BUSHING,19mm ID x 22mm OD x 25mm L

Lift Arm O.D. 22.0 x I.D. 19.0 x 25.0L

2шт.

5

MT40009718

BUSHING,45mm ID x 55mm OD x 30mm L

Hydraulic Lift Shaft O.D. 55.0 x I.D. 45.0 x 30.0L

2шт.

6

MT40029223

O-RING,3.1mm Thk x 44.4mm ID

D44.4 x W3.1

2шт.

7

MT40008343

COLLAR,45mm ID x 50mm OD x 14 Thk

O.D. 50 x I.D. 45 x 14T

2шт.

8

MT40029278

RING,M42

Ring, Snap D42

2шт.

9

MT40009179

POWER ARM

1шт.

10

MT40011870

PLATE,3.2mm Thk

Lock 3.2T

1шт.

11

MT40028919

BOLT,Hex, M8 x 1.25 x 16mm, W/ Wshr

Hex W/Washer M8 x 1.25 x 16L

1шт.

12

MT40012845

PLUG,Tpr, 1/4" PT

Taper PT 1/4

1шт.

13

MT40009792

PLUG,9.50mm OD x 7.50mm L

Plug, Air Vent O.D. 9.5 x 7.5L

1шт.

14

MT40009526

PLUG,M12 x 1.75 x 12mm

M12 X 1.75 X 12L

1шт.

15

MT40012552

SEAL,12.20mm ID x 19mm OD, 1.50mm Thk, Copper

Copper O.D. 19 x I.D. 12.2 x 1.5T

1шт.
