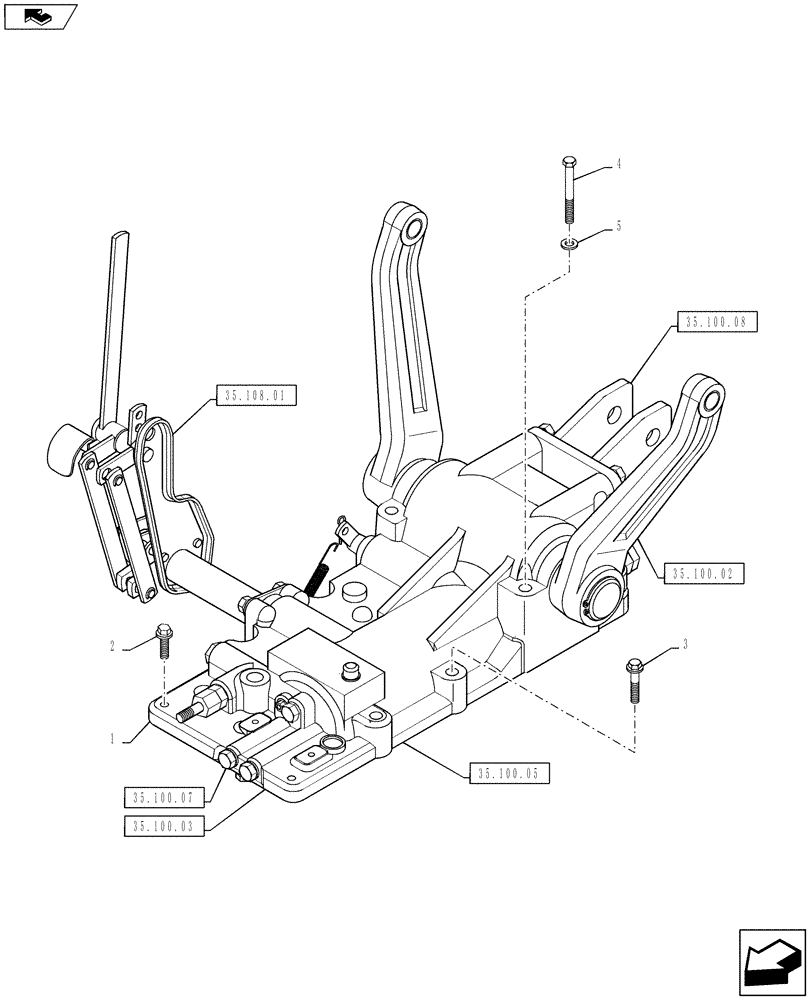

Запчасти Case IH FARMALL 35B (35.100.01) - HYDRAULIC HOUSING ASSY - W/DRAFT CONTROL (35) - HYDRAULIC SYSTEMS

1

MT20117815

HOUSING

Hydraulic Refer to Fig. 35.100.02

1шт.

2

MT40028940

BOLT,Hex, M12 x 1.75 x 40mm

Hex, W/Washer M12 x 1.75 x 40L

4шт.

3

MT40028943

BOLT,M12 x 1.75 x 60mm

Hex, W/Washer M12 x 1.75 x 50L

4шт.

4

MT40029442

BOLT,Hex, M12 x 1.75 x 110mm

Hex, M12 x 1.75 x 110L

2шт.

5

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring, O.D. 21.5 x I.D. 12.2 x 3T

2шт.
