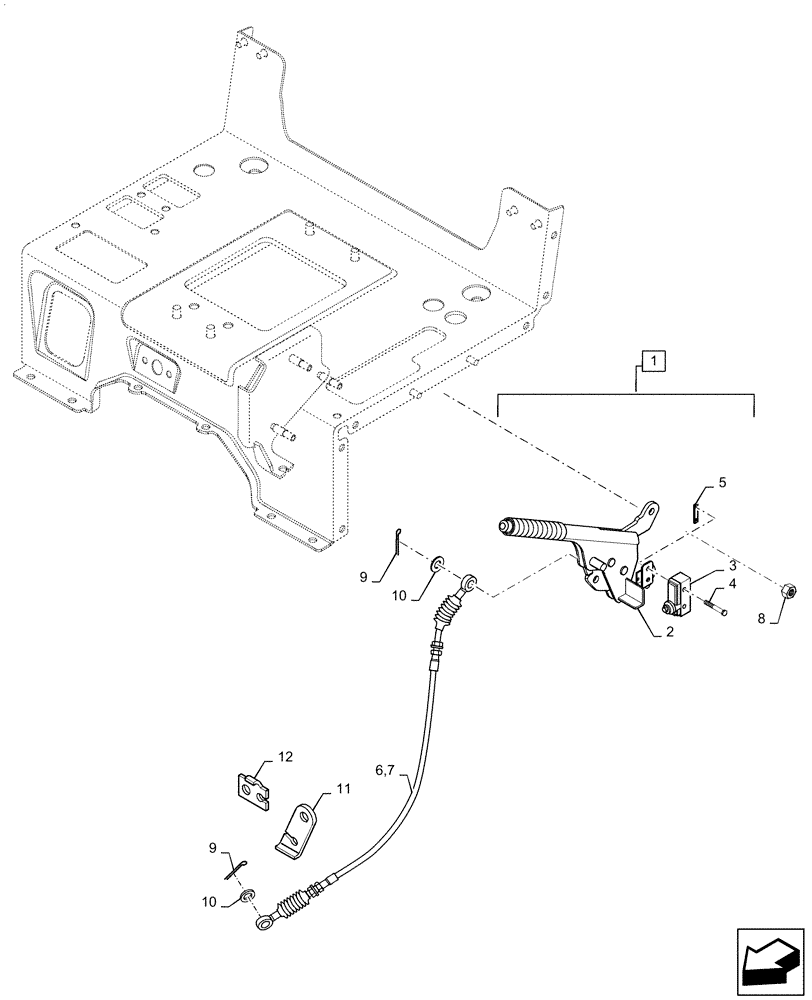

Запчасти Case IH FARMALL 35B (33.120.04) - PARKING BRAKE LEVER (33) - BRAKES & CONTROLS

1

MT40234578

PARKING BRAKE

Includes: Ref. 2-5

1шт.

2

MT40234580

PARKING BRAKE

1шт.

3

MT40007150

MFD SWITCH,125VAC/12A

Neutral 125VAC/15A

1шт.

4

MT40028709

SCREW,M4 x 0.7 x 30mm

M4 x 0.7 x 30L

2шт.

5

MT40012510

PLATE

CLAMP, Switch 2.3T

1шт.

6

MT40275403

CABLE

Parking Brake 1190.0 OL, 12x12

1шт.

7

MT40275402

CABLE

Parking Brake 850.0 OL, HST

1шт.

8

MT40029075

FLANGE NUT,Hex, M8 x 1.25

Flange, M8 x 1.25

3шт.

9

MT40029121

PIN,25mm OD x 20mm L

Split D25 x 20L

2шт.

10

MT40028171

WASHER,10.5mm ID x 21mm OD x 2mm Thk

Plain, O.D. 21 x I.D. 10.5 x 2T

2шт.

11

MT40011904

BRACKET,4.5mm Thk

Parking Brake Cable 4.5T, 12x12

1шт.

12

MT40011903

BRACKET,4.5mm Thk

Parking Brake Cable 4.5T, HST

1шт.
