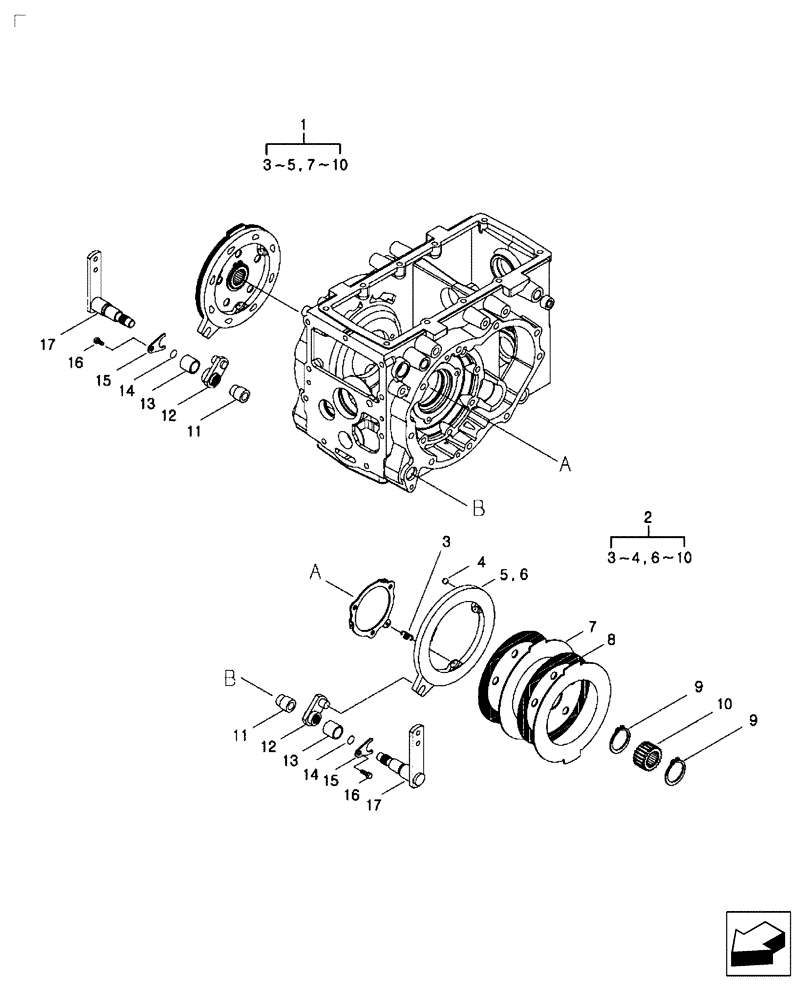

Запчасти Case IH FARMALL 35B (33.120.01) - BRAKE (33) - BRAKES & CONTROLS

1

MT40007719

BRAKE

RH Includes: Ref. 3-5, 7-10

1шт.

2

MT40007720

BRAKE

LH Includes: Ref. 3-4, 6-10

1шт.

3

MT40011957

SPRING,14mm x 2mm Dia x 25mm L

3шт.

4

MT40009462

BALL,M12.70

Steel

8шт.

5

MT40009196

PLATE

Cam RH

1шт.

6

MT40009197

PLATE

Cam LH

1шт.

7

MT40011290

PLATE,3.10mm Thk

Pressure 3.1T

2шт.

8

MT40007721

DISC

2шт.

9

MT40029284

SNAP RING,58mm Dia

2шт.

10

MT40009729

SPLINE,35mm ID x 58.42mm OD x 25L

Boss

1шт.

11

MT40009480

BUSHING

Brake Lever

2шт.

12

MT40012618

ARM

Brake Inner

2шт.

13

MT40012919

BUSHING,#78

#78

2шт.

14

MT40029211

O-RING,3.50mm Thk x 24.70mm ID

2шт.

15

MT40011884

PLATE,3.20mm Thk

3.2T

2шт.

16

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

Hex W/Washer M10 x 1.25 x 20

2шт.

17

MT40011457

LEVER

Brake

2шт.
