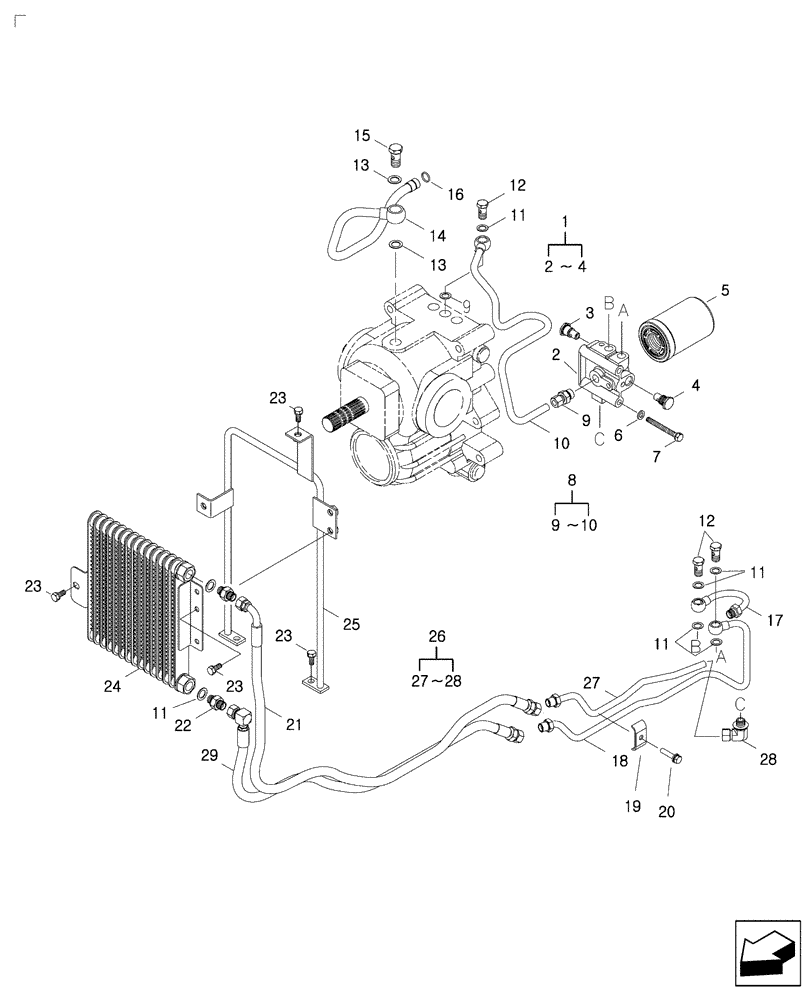

Запчасти Case IH FARMALL 35B (29.204.01) - COOLER - HST (29) - HYDROSTATIC DRIVE

1

MT40007999

FLANGE

Filter

1шт.

2

MT40008928

FLANGE

Filter

1шт.

3

MT40007884

VALVE,CHECK, 4.2 BAR

Check

1шт.

4

MT40007882

VALVE,CHECK, 2.0 BAR

Check

1шт.

5

MT40007563

FILTER

Hydraulic

1шт.

6

MT40029549

WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk

Spring O.D. 18.4 x I.D. 10.2 x 2.5T

2шт.

7

MT40029437

BOLT,M10 x 1.5 x 120mm

Hex, M10 x 1.5 x 120L

2шт.

8

MT40007998

PIPE

HST, In

1шт.

9

MT40009977

JOINT,12mm OD x 1/2"

1шт.

10

NSS

NOT SOLD SEPARAT

HST, In O.D. 12 x 1.0T

1шт.

40011084

1шт.

11

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

Bonded, O.D. 16.8 x 1.5T

8шт.

12

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

Union

3шт.

13

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

Bonded O.D. 21.2 x 1.5T

2шт.

14

MT40011559

PIPE,15mm OD x 1.5mm Thk

HST, Out O.D. 15 x 1.5T

1шт.

15

MT40010250

BOLT,Union 1/2" x 36mm L

Union

1шт.

16

MT40029241

O-RING,1.5 Thk x 15.5mm ID

O-Ring

1шт.

17

MT40011543

HYD CONNECTOR

Union, Hose O.D. 12 x 1.0T

1шт.

18

MT40011366

PIPE

Cooler, Out O.D. 12 x 1.0T

1шт.

19

MT40012306

CLAMP,2.3mm Thk

Pipe 2.3T

1шт.

20

MT40028968

BOLT,Hex, M6 x 1 x 30mm

Hex W/Washer M6 x 1 x 30L

1шт.

21

MT40007853

HOSE

Cooler, In 3/8 x 1210L

1шт.

22

MT40009818

HYD CONNECTOR,M16 x 1.50 x 3/8"

Union, Hose 3/8 - M16 x 1.5

2шт.

23

MT40028971

BOLT,Hex, M8 x 1.25 x 20mm

Hex W/Washer M8 x 1.25 x 20L

6шт.

24

MT40007704

CORE-OIL COOLER

1шт.

25

MT40011221

SUPPORT

Cooler

1шт.

26

MT40008075

PIPE

Cooler In Includes: Ref. 27 & 28

1шт.

27

NSS

NOT SOLD SEPARAT

Cooler In O.D. 12 x 1.0T

1шт.

40011542

1шт.

28

MT40008156

ELBOW

1шт.

29

MT40007859

HOSE

Cooler Out 3/8 x 955L

1шт.
