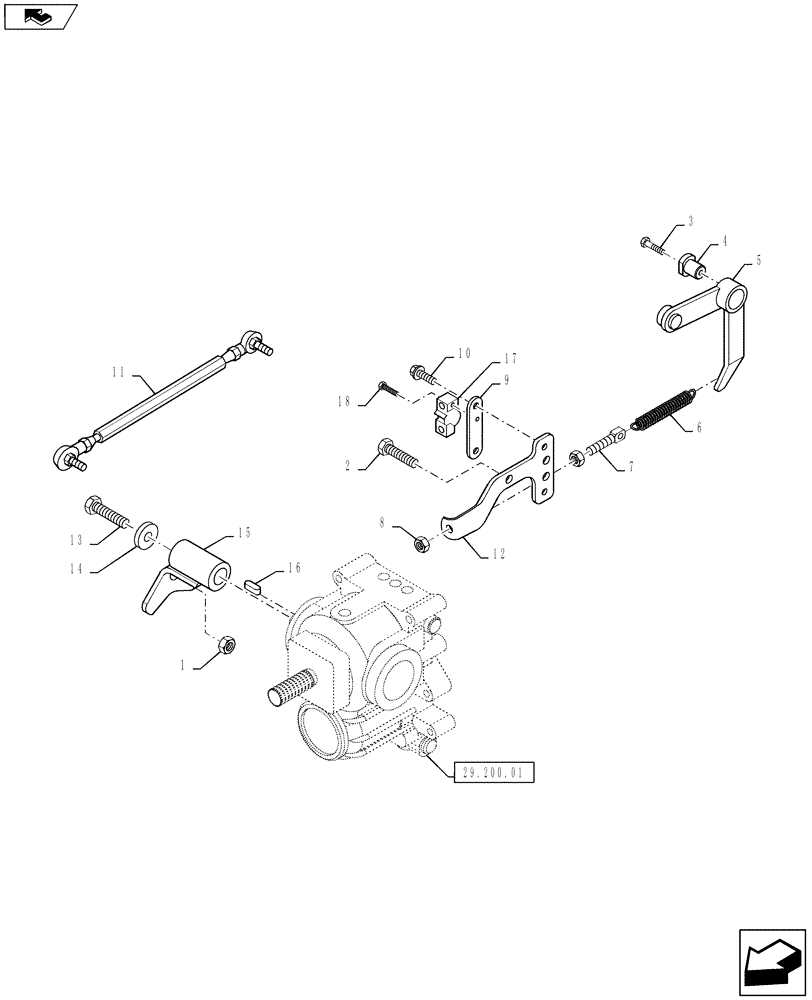

Запчасти Case IH FARMALL 35B (29.200.03) - HST CONTROL (29) - HYDROSTATIC DRIVE

1

MT40027836

NUT

Lock

1шт.

2

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

M10 x 1.25 x 25L

1шт.

3

MT40028954

BOLT,M10 x 1.25 x 55mm

Hex, W/Washer M10 x 1.25 x 55L

1шт.

4

MT40009880

SHAFT,25.5mm L

Control, 25.5L

1шт.

5

MT40013018

ARM

Sub-Neutral

1шт.

6

MT40012894

SPRING,2.9mm ID x 22mm OD x 110mm L

1шт.

7

MT40012133

BOLT,8mm OD

Adjustable

1шт.

8

MT40029040

NUT,Hex, M8 x 1.25

Hex, Small M8 x 1.25

2шт.

9

MT40009454

PLATE,4.5mm Thk

4.5T

1шт.

10

MT40028909

BOLT,Hex, M6 x 1 x 12mm

Hex W/Washer M6 x 1 x 12L

2шт.

11

MT40297693

ROD

11.5mm

1шт.

12

MT40011300

BRACKET,4.5mm Thk

Spring

1шт.

13

MT40028956

BOLT,Hex, M10 x 1.25 x 70mm

Hex, M10 x 1.25 x 70L

1шт.

14

MT40012971

WASHER

1шт.

15

MT40012242

CAM

HST

1шт.

16

MT40029090

KEY

5 X 5 X 16L

1шт.

17

MT40007150

MFD SWITCH,125VAC/12A

HST Neutral

1шт.

18

MT40028710

SCREW,M4 x 0.7 x 35mm

M4 x .07 x 35L

2шт.

19

MT40029201

O-RING,2.4mm Thk x 13.8mm ID

ID3.8mm Thickness 2.4mm Used With Plug

1шт.

NOT ILLUSTRATED

1шт.
