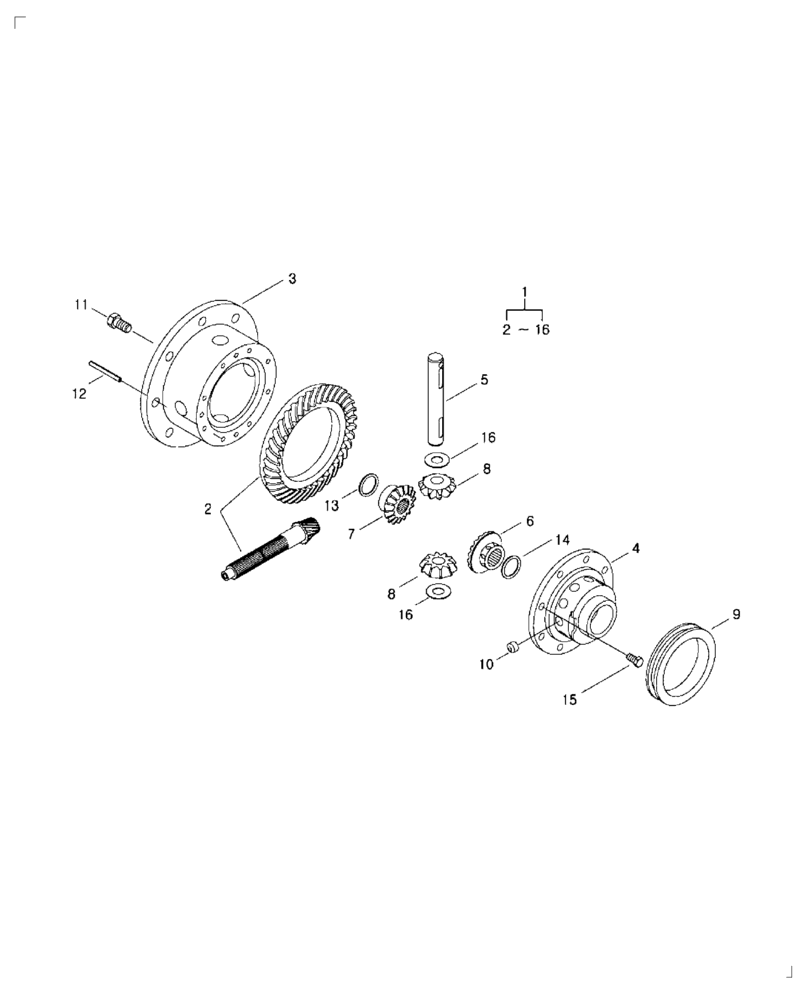

Запчасти Case IH FARMALL 35B (27.106.01) - REAR DIFFERENTIAL (27) - REAR AXLE SYSTEM

1

MT40199716

AXLE DIFFERENTIAL

Rear Includes: 2-18

1шт.

2

MT40182271

GEAR

Set, Ring & Pinion

1шт.

3

MT40008994

CASE

Diff-1

1шт.

4

MT40009434

CASE

Diff-2

1шт.

5

MT40010205

SHAFT,19.05mm OD x 130mm L

O.D. 19.05 x 130

1шт.

6

MT40182442

GEAR

Diff Side (LH)

1шт.

7

MT40182443

GEAR

Diff Side (RH)

1шт.

8

MT40182444

GEAR

Pinion Drive

2шт.

9

MT40009810

HUB,99mm OD x 17mm L

Diff-Lock O.D. 99.0 x 17.0

1шт.

10

MT40009888

ROLLER,12mm OD

10шт.

11

MT40182446

BOLT,M12

Flange, M12

8шт.

12

MT40029174

PIN,Spring, M6 x 50mm L

Spring

1шт.

13

MT40012426

WASHER,41.47mm ID x 71.44mm OD x 0.8mm Thk

Thrust O.D. 71.44 x I.D. 41.47 x 0.8

1шт.

14

MT40012128

WASHER,55mm ID x 74mm OD x 0.8mm Thk

Thrust O.D. 74.0 x I.D. 55.0 x 0.8

1шт.

15

MT40182447

BOLT,M8

Flange, M8

8шт.

16

MT40012423

WASHER,19.45mm ID x 45.07mm OD x 0.80mm Thk

Thrust O.D. 45.07 x I.D. 19.45 x .08

2шт.
