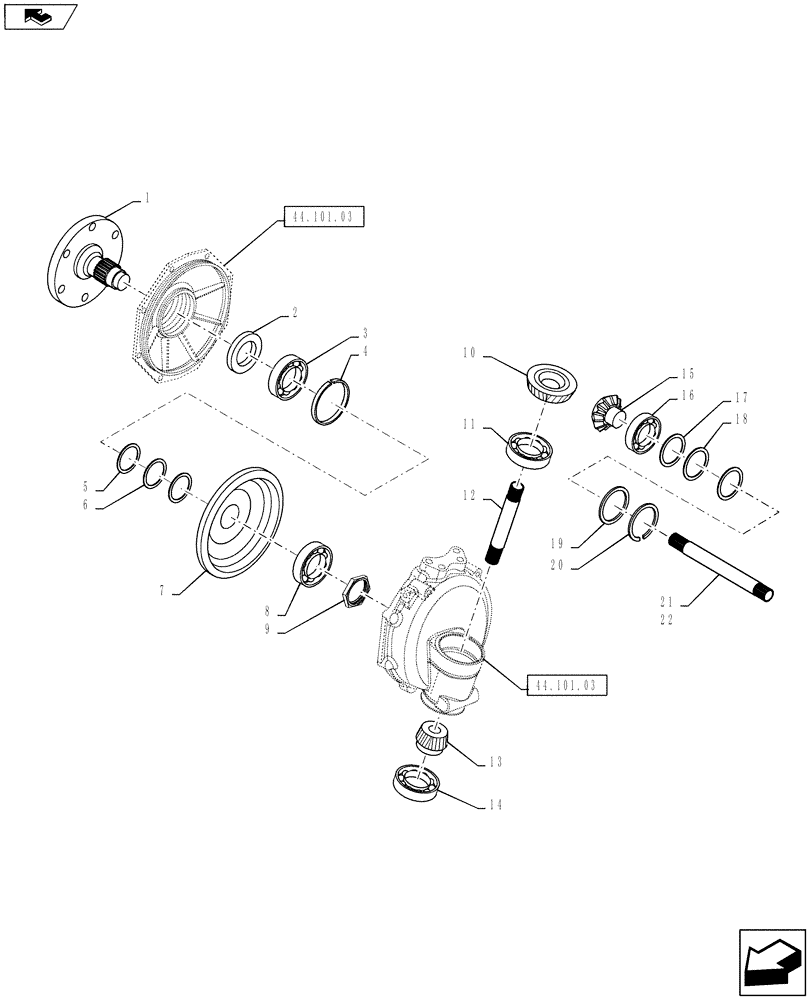

Запчасти Case IH FARMALL 35B (25.108.01) - FRONT DRIVE (25) - FRONT AXLE SYSTEM

1

MT40188935

SHAFT

SHAFT, FRONT AXLE

2шт.

2

MT40188939

OIL SEAL

SEAL, OIL

2шт.

3

MT40061089

BALL BEARING,45mm ID x 85mm OD x 19mm W

BEARING, BALL #6209

2шт.

4

MT40198357

SNAP RING

RING, SNAP

2шт.

5

MT40188946

SHIM,51mm ID x 61mm OD x 0.2mm Thk

LINER O.D. 61 x I.D. 51 x 0.2T

2шт.

6

MT40188945

SHIM,51mm ID x 61mm OD x 0.5mm Thk

LINER O.D. 61 x I.D. 51 x 0.5T

4шт.

7

MT40188931

BEVEL GEAR,49T

GEAR, BEVEL 49T

2шт.

8

MT40012711

BALL BEARING

#62080

2шт.

9

MT40009906

NUT

Lock

2шт.

10

MT40188929

BEVEL GEAR,19T

GEAR, BEVEL 19T

2шт.

11

MT40012709

BALL BEARING

#62070

2шт.

12

MT40188934

SHAFT

SHAFT, KING PIN

2шт.

13

MT40188930

BEVEL GEAR,11T

GEAR, BEVEL 11T

2шт.

14

MT40012709

BALL BEARING

2шт.

15

MT40188928

BEVEL GEAR,9T

GEAR, BEVEL 9T

2шт.

16

MT40012709

BALL BEARING

2шт.

17

MT40188667

SHIM,44mm ID x 54mm OD x 0.3mm Thk

LINER, OD 54x ID 44 x 0.3T

2шт.

18

MT40188666

SHIM,56mm ID x 71mm OD x 0.5mm Thk

LINER, OD 71 x ID 56 x 0.5T

4шт.

19

MT40214598

SHIM,46mm ID x 56mm OD x 0.2mm Thk

LINER, OD 46 x ID 56 x 0.2T

2шт.

20

MT40029301

SNAP RING,M72

2шт.

21

MT40188933

SHAFT

SHAFT, Front Differential RH

1шт.

22

MT40188932

SHAFT

SHAFT, Front Differential LH

1шт.
