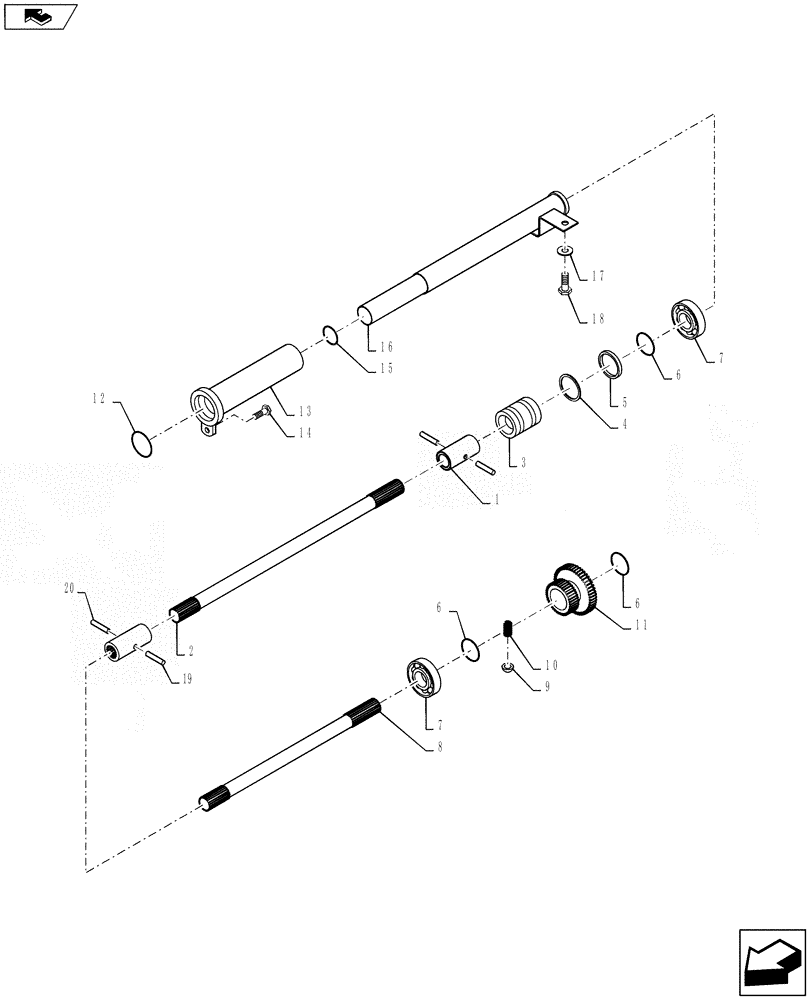

Запчасти Case IH FARMALL 35B (23.101.01) - FRONT & REAR 4WD SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

1

MT40013044

JOINT

Incl 19 - 20

2шт.

2

MT40009092

SHAFT

FWD Front O.D. 25 x 629

1шт.

3

MT40009708

HOUSING,25mm ID x 47mm OD x 40mm L

Oil Seal O.D. 47 x I.D. 25 x 40

1шт.

4

MT40029215

O-RING,40.7mm OD x 3.5mm Thk

1шт.

5

MT40012884

OIL SEAL

#1253

1шт.

6

MT40029271

SNAP RING,M25

3шт.

7

MT40012703

BALL BEARING

#62050

2шт.

8

MT40009258

SHAFT,25mm OD x 511mm L

FWD O.D. 25 x 511

1шт.

9

MT40010339

BALL

Shift Fork

2шт.

10

MT40011939

SPRING,7.2mm OD x 22mm L

1шт.

11

MT40009779

GEAR

FWD O.D. 86.3 x I.D. 22.5 x 11

1шт.

12

MT40029225

O-RING,3.1 Thk x 59.4mm ID

D59 .4 x W3.1

1шт.

13

MT40011347

COVER

4wd Front

1шт.

14

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

Hex, M8 x 1.25 x 20

1шт.

15

MT40030249

O-RING

1шт.

16

MT40010998

COVER

4wd Rear

1шт.

17

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring, OD 21.5 x ID 12.2 x 3T

1шт.

18

MT40029380

BOLT,Hex, M12 x 1.75 x 25mm

Hex, M12 x 1.75 x 25L

1шт.

19

MT40029152

COILED PIN

2шт.

20

MT40029161

COILED PIN

2шт.
