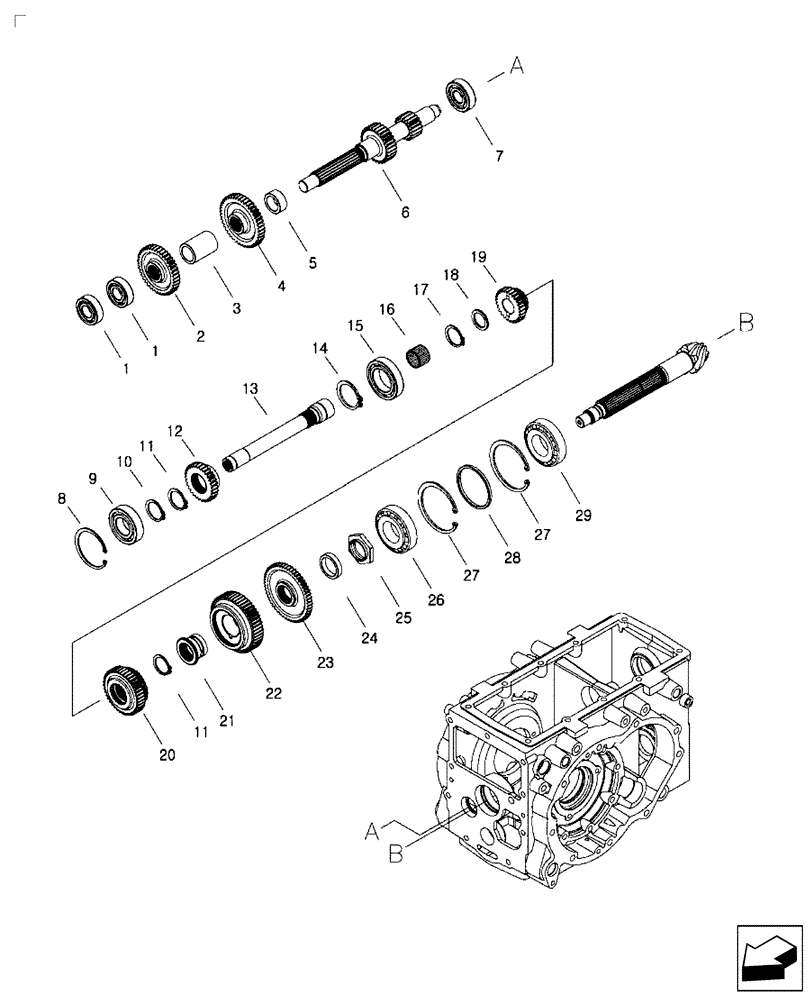

Запчасти Case IH FARMALL 35B (21.148.02) - RANGE GEAR SHAFT - HST (21) - TRANSMISSION

1

MT40012702

BALL BEARING

#62040

2шт.

2

MT40009777

GEAR,22.5mm ID x 84.1mm OD x 12mm Thk

Range Drive O.D. 84.1 x I.D. 22.5 x 12W

1шт.

3

MT40010029

SPACER,25mm ID x 35mm OD x 50mm L

O.D. 35 x I.D. 25 x 50L

1шт.

4

MT40009795

GEAR,22.5mm ID x 90.1mm OD x 12mm Thk

Range Drive 3rd O.D. 90.1 x I.D. 22.5 x 12W

1шт.

5

MT40010026

SPACER,25mm ID x 35mm OD x 15mm L

O.D. 35 x I.D. 25 x 15

1шт.

6

MT40009131

SHAFT,62.3mm OD x 299mm L

SHAFT, RANGE DRIVE O.D. 62.3 x 299L

1шт.

7

MT40012714

BALL BEARING

#63040

1шт.

8

MT40029299

SNAP RING,M62

1шт.

9

MT40012706

BALL BEARING

#62060

1шт.

10

MT40029273

SNAP RING,M30

1шт.

11

MT40029274

SNAP RING,M32

2шт.

12

MT40010110

GEAR,30.69mm ID x 64mm OD x 12mm Thk

Range Drive HST O.D. 64 x I.D. 30.69 x 12W

1шт.

13

MT40009272

SHAFT,40mm OD x 290.5mm L

Range Drive O.D. 40 x 290.5L

1шт.

14

MT40029277

SNAP RING,M40

1шт.

15

MT40012698

BALL BEARING

#60080

1шт.

16

MT40030211

NEEDLE BEARING

1шт.

17

MT40029271

SNAP RING,M25

1шт.

18

MT40010063

SPACER,25mm ID x 42mm OD x 3mm L

O.D. 42 x I.D. 25 x 3L

1шт.

19

MT40009728

GEAR,25mm ID x 58.1mm OD x 12mm Thk

Range Drive 3rd O.D. 58.1 x I.D. 25 x 12W

1шт.

20

MT40009159

GEAR,31.75mm ID x 85.9mm OD x 18mm Thk

Range Drive 2nd O.D. 85.9 x I.D. 31.749 x 18W

1шт.

21

MT40010338

SLEEVE,30.69mm ID x 50mm OD x 31mm L

Gear O.D. 50 x I.D. 30.69 x 31

1шт.

22

MT40009056

GEAR,40mm ID x 106.7mm OD x 22mm Thk

Range Drive 1st O.D. 106.7 x I.D. 40 x 22

1шт.

23

MT40009598

GEAR

FWD O.D. 109.9 x I.D. 30.69 x 10

1шт.

24

MT40009689

SPACER,35mm ID x 42.7mm OD x 8.5mm L

O.D. 42.7 x I.D. 35 x 8.5

1шт.

25

MT40009936

NUT,M35 x 1.5

Lock M35 x 1.5 x 12

1шт.

26

MT40007833

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm L

#30207 O.D. 72 x I.D. 35 x 18.25

1шт.

27

MT40029301

SNAP RING,M72

2шт.

28

MT40010116

SPACER,64.3mm ID x 72mm OD x 4.4mm L

O.D. 72 x I.D. 64.3 x 4.4

1шт.

29

MT40007835

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm L

#32207C O.D. 72 x I.D. 35 x 24.25

1шт.
