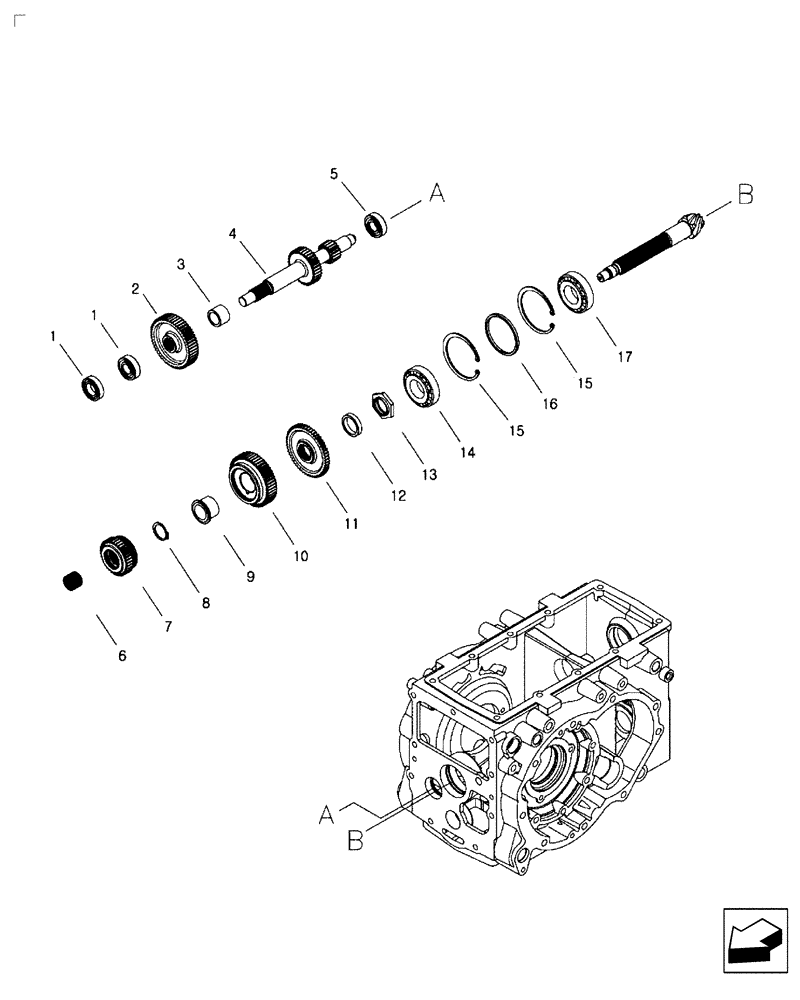

Запчасти Case IH FARMALL 35B (21.148.01) - RANGE GEAR SHAFT - 12X12 (21) - TRANSMISSION

1

MT40012702

BALL BEARING

#62040

2шт.

2

MT40009594

GEAR,26mm ID x 107mm OD x 26mm L

Range Drive O.D. 107.0 x I.D. 26.0 x 26.5

1шт.

3

MT40010026

SPACER,25mm ID x 35mm OD x 15mm L

O.D. 35 x I.D. 25 x 15

1шт.

4

MT40009138

SHAFT,71.9mm OD x 299mm L

Range W/Gear O.D. 71.9 x 299.0

1шт.

5

MT40012714

BALL BEARING

#63040

1шт.

6

MT40030211

NEEDLE BEARING

1шт.

7

MT40009139

GEAR,34mm ID x 76.3mm OD x 37.5mm L

Range Drive O.D. 76.3 x I.D. 34.0 x 37.5

1шт.

8

MT40029274

SNAP RING,M32

1шт.

9

MT40010338

SLEEVE,30.69mm ID x 50mm OD x 31mm L

Gear O.D. 50 x I.D. 30.69 x 31

1шт.

10

MT40009056

GEAR,40mm ID x 106.7mm OD x 22mm Thk

Range Drive 1st O.D. 106.7 x I.D. 40 x 22

1шт.

11

MT40009598

GEAR

FWD O.D. 109.9 x I.D. 30.69 x 10

1шт.

12

MT40009689

SPACER,35mm ID x 42.7mm OD x 8.5mm L

O.D. 42.7 x I.D. 35 x 8.5

1шт.

13

MT40009936

NUT,M35 x 1.5

Lock M35 x 1.5 x 12

1шт.

14

MT40007833

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm L

#30207 O.D. 72 x I.D. 35 x 18.25

1шт.

15

MT40029301

SNAP RING,M72

2шт.

16

MT40010116

SPACER,64.3mm ID x 72mm OD x 4.4mm L

O.D. 72 x I.D. 64.3 x 4.4

1шт.

17

MT40007835

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm L

#32207C O.D. 72 x I.D. 35 x 24.25

1шт.
