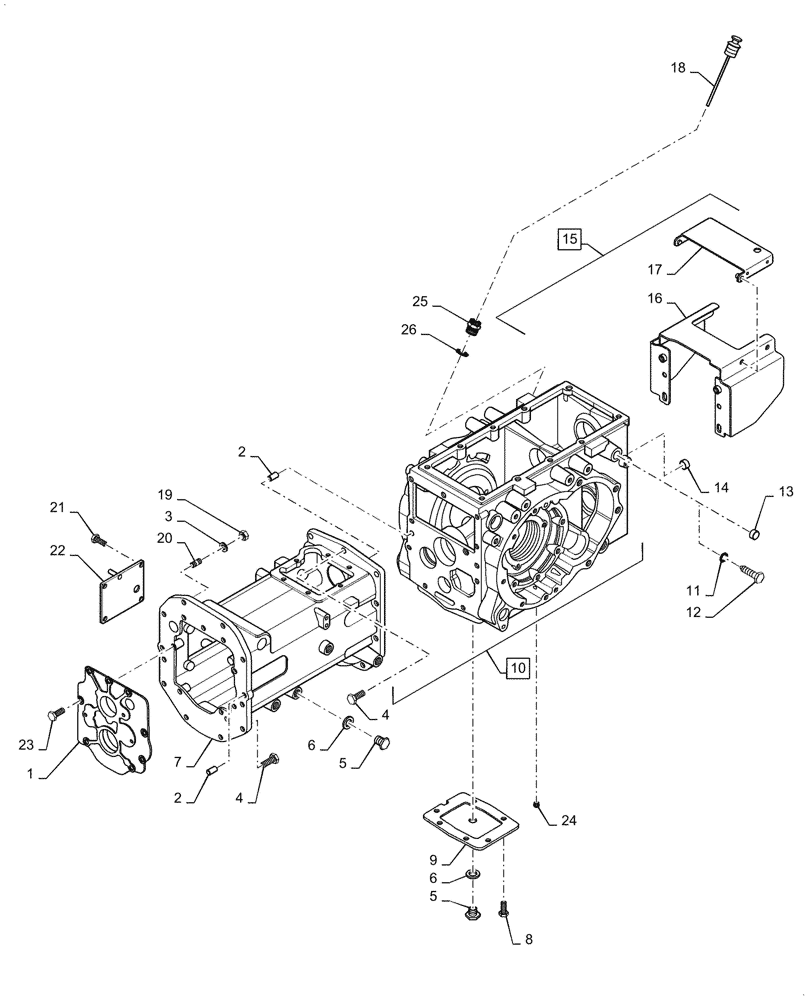

Запчасти Case IH FARMALL 35B (21.118.02) - REAR AXLE TRANSMISSION CASE - 12X12 (21) - TRANSMISSION

1

MT20021498

COVER

Clutch Case

1шт.

2

MT40029102

PIN,M10 x 20mm L

10 x 20

6шт.

3

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring, O.D. 21.5 x I.D. 12.2 x 3T

4шт.

4

MT40028939

BOLT,Hex, M12 x 1.75 x 35mm

Hex W/Washer M12 x 1.75 x 35

15шт.

5

MT40229917

PLUG

Drain, M20 x 1.5

2шт.

6

MT40229916

SEAL,20mm ID x 26mm OD x 1.5mm L

Plug

2шт.

7

MT40010353

CASE

Center

1шт.

8

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

Hex W/Washer M10 x 1.25 x 25

6шт.

9

MT40009186

COVER

Mid PTO

1шт.

10

MT20110746

AXLE

Incl 25 & 26, Case, Mid PTO

1шт.

11

MT40029196

O-RING,2.4mm Thk x 9.8mm ID

1шт.

12

MT40009858

BOLT

Self Lock

1шт.

13

MT40012282

CAP,.8mm Thk

Rail 0.8T

1шт.

14

MT40012807

CAP,5mm x 16mm OD x 1mm Thk

O.D. 16 x 5 x 1T

1шт.

15

MT40229678

SHIELD

PTO Includes: REF. 16 & 17

1шт.

16

MT40230292

SHIELD

PTO

1шт.

17

MT40229681

COVER

PTO Shield

1шт.

18

MT40007443

GAUGE

Oil Level

1шт.

19

MT40028771

NUT,M12 x 1.75

Hex, M12 x 1.75

4шт.

20

MT40028904

BOLT

Stud, M12 x 1.75 x 35

4шт.

21

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

Hex W/Washer M10 x 1.25 x 20

4шт.

22

MT40012342

COVER,6mm Thk

Main Shift Fork

1шт.

23

MT40028949

BOLT,Hex, M10 x 1.25 x 30mm

Hex W/Washer M10 x 1.25 x 30

7шт.

24

MT40253589

PLUG,3/4"

Plug, 3/4"

1шт.

25

MT40309868

Oil Level Gauge, Use W/MT20144502

JOINT

1шт.

26

MT40029247

O-RING,2mm Thk x 27.50mm OD

1шт.
