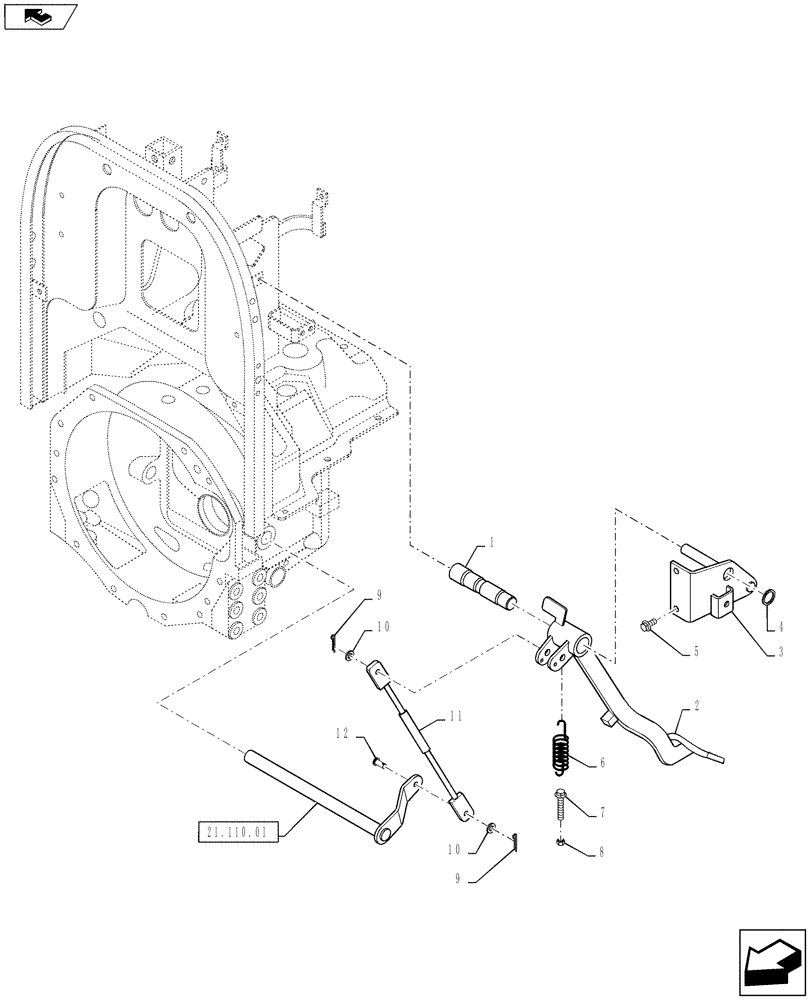

Запчасти Case IH FARMALL 35B (18.100.01) - CLUTCH PEDAL - 12X12 (18) - CLUTCH

1

MT40009481

SHAFT

Brake Pedal , 26.0 x 138.5

1шт.

2

MT40010997

PEDAL

Clutch

1шт.

3

MT40011433

STOP DEVICE

Clutch Pedal

1шт.

4

MT40029271

SNAP RING,M25

1шт.

5

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

Hex W/Washer, M8 x 1.25 x 20

2шт.

6

MT40011959

SPRING,16mm x 2.30mm Dia x 80mm L

1шт.

7

MT40012132

BOLT,Adj, 8mm OD

Adjuster

1шт.

8

MT40012797

NUT,M8 x 1.25

Lock, M8 x 1.25

1шт.

9

MT40029132

HAIR PIN COTTER,M10

2шт.

10

MT40028158

WASHER,10.50mm ID x 18mm OD x 2mm Thk

18 x 10.5 x 2

2шт.

11

MT40009838

LINK

Clutch

1шт.

12

MT40009620

PIN,5mm

Clutch Lever O.D. 14 x I.D. 10 x 20.5

1шт.
