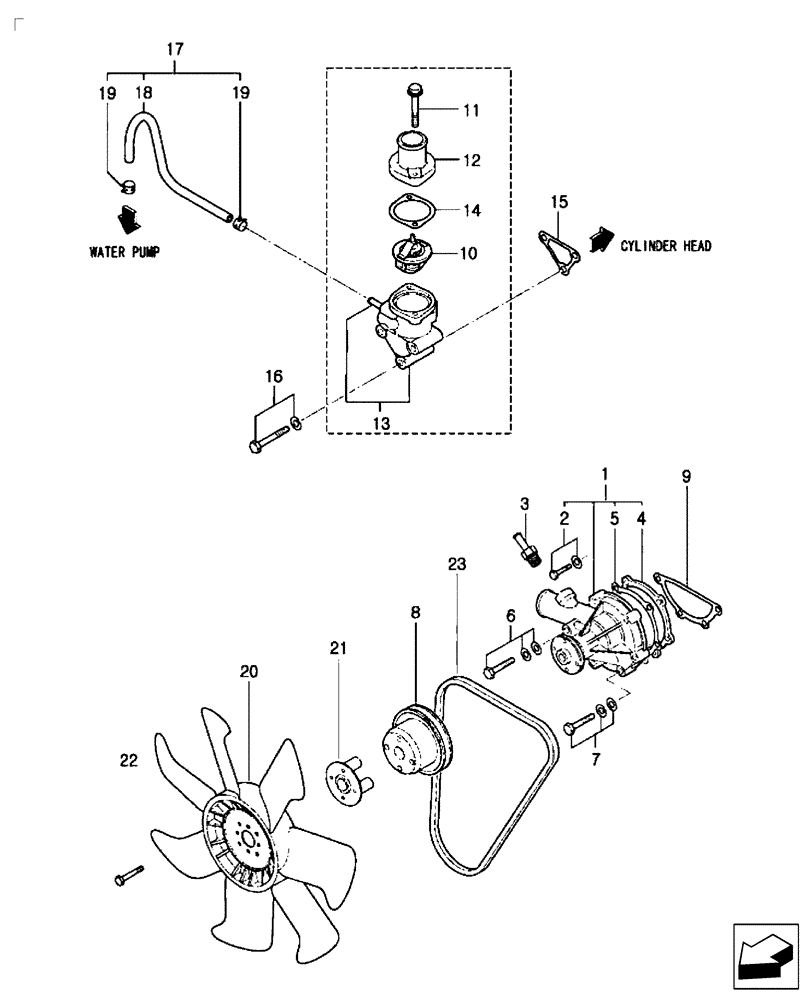

Запчасти Case IH FARMALL 35B (10.414.01) - COOLING SYSTEM (10) - ENGINE

1

MT40225206

PUMP

Includes: Ref. 2, 4 & 5

1шт.

2

MT40225150

BOLT

W/Washer

2шт.

3

MT40225207

NIPPLE

1шт.

4

MT40225208

PLATE

Water Pump

1шт.

5

MT40055385

GASKET

Water Pump

1шт.

6

MT40225170

BOLT

W/Washer

3шт.

7

MT40225171

BOLT

W/Washer

1шт.

8

MT40109254

PULLEY

1шт.

9

MT40109139

GASKET

Water Pump

1шт.

10

MT40225132

THERMOSTAT

Thermostat

1шт.

11

MT40152831

BOLT

Bolt

2шт.

12

MT40210764

COVER

Thermostat

1шт.

13

MT40233029

CASE

Thermostat

1шт.

14

MT40122883

GASKET

Thermostat

1шт.

15

MT40109259

GASKET

Thermostat Case

1шт.

16

MT40152858

BOLT

W/Washer

3шт.

17

MT40224970

HOSE ASSY.

Fuel Includes: Ref. 18 & 19

1шт.

18

MT40233045

FUEL HOSE

1шт.

19

MT40225128

CLAMP

2шт.

20

MT40109260

FAN

Cooling

1шт.

21

MT40189028

SPACER

Fan

2шт.

22

MT40225155

BOLT

W/Washer

4шт.

23

MT40055759

BELT

V L=990mm

1шт.
