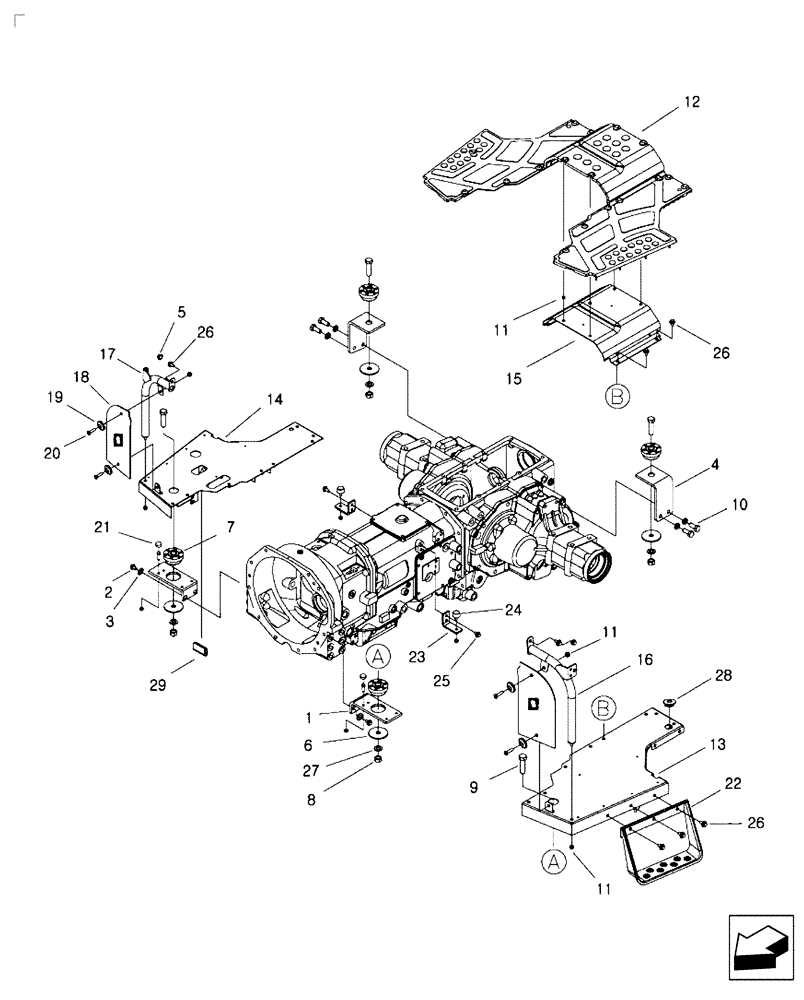

Запчасти Case IH FARMALL 35B (90.118.01) - STEPS & FLOOR MATS - 12X12 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT40011634

BRACKET

Front Step

2шт.

2

MT40029395

BOLT,Hex, M14 x 2 x 35mm

Hex, M14 x 2 x 35L

4шт.

3

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

O.D. 24.5 x I.D. 14.2 x 3.5T

4шт.

4

MT40012266

BRACKET

Rear Mount

2шт.

5

MT40008371

CAP

Bolt

2шт.

6

MT40012088

WASHER,71mm ID x 16.5mm OD x 4.5mm Thk

Rebound O.D. 16.5 x I.D. 71 x 4.5T

4шт.

7

MT40007473

MOUNT,42mm OD x 3mmThk

4шт.

8

MT40029032

NUT,M16 x 1.5

Hex M16

4шт.

9

MT40029479

BOLT,Hex, M16 x 1.5 x 60mm

Hex M16 x 1.5 x 60L

4шт.

10

MT40028939

BOLT,Hex, M12 x 1.75 x 35mm

Hex W/Washer M12 x 1.75 x 35L

4шт.

11

MT40029075

FLANGE NUT,Hex, M8 x 1.25

Flange M8

6шт.

12

MT40050189

FLOOR MAT

1шт.

13

MT40192519

STEP

LH

1шт.

14

MT40192525

STEP

RH

1шт.

15

MT40159913

STEP

Center

1шт.

16

MT40011227

FRAME

Mud Guard, LH

1шт.

17

MT40011228

FRAME

Mud Guard, RH

1шт.

18

MT40008373

PLATE

Mud Guard

2шт.

19

MT40008374

SPACER

4шт.

20

MT40028674

SCREW,M8 x 1.25 x 25mm L

M8 x 1.25 x 25L

4шт.

21

MT40007407

STOP DEVICE,22mm OD x 2mm ID x 8mm Thk

Front Mount O.D. 22 x I.D. 2 x 8T

2шт.

22

MT40011713

STEP

1шт.

23

MT40012492

BRACKET

Center Mount

2шт.

24

MT40007351

RUBBER SLEEVE

Center Mount

2шт.

25

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

Hex W/Washer, M8 x 1.25 x 20L

4шт.

26

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

Hex W/Washer, M8 x 1.25 x 20L

9шт.

27

MT40029555

WASHER,16.20mm ID x 28mm OD x 4mm Thk

O.D. 28 x I.D. 16.2 x 4T

4шт.

28

MT40007357

GROMMET,21mm OD x 23mm Thk

Wiper Front

1шт.

29

MT40007334

SEALING STRIP

38L

1шт.
