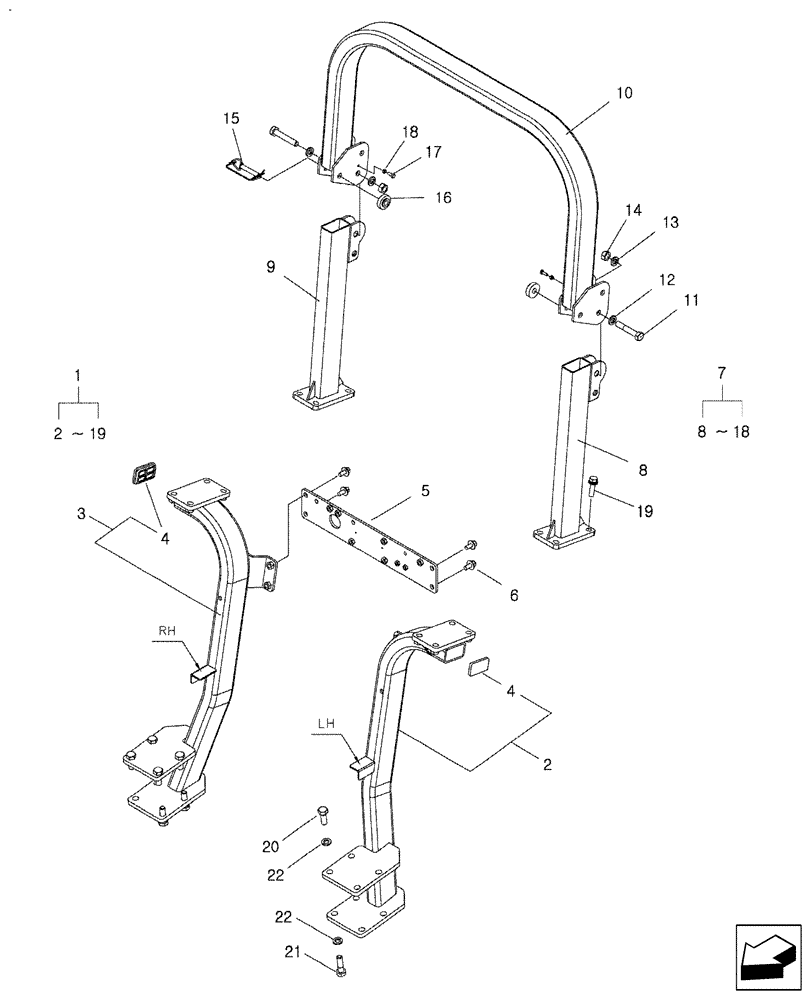

Запчасти Case IH FARMALL 35B (90.114.01) - FOLDABLE ROPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT20119933

ROPS

Includes: Ref. 2-22

1шт.

2

NSS

NOT SOLD SEPARAT

Lower, LH

1шт.

40243232

1шт.

3

NSS

NOT SOLD SEPARAT

Lower, RH

1шт.

40243231

1шт.

4

NSS

NOT SOLD SEPARAT

Cover, Rubber

2шт.

40007454

1шт.

5

NSS

NOT SOLD SEPARAT

FRAME, Rear

1шт.

40012609

1шт.

6

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

Hex W/Washer M10 x 1.25 x 25L

4шт.

7

NSS

NOT SOLD SEPARAT

FRAME, Upper Includes: Ref. 11-22

1шт.

40006768

1шт.

8

NSS

NOT SOLD SEPARAT

FRAME, Mid LH

1шт.

40011594

1шт.

9

NSS

NOT SOLD SEPARAT

FRAME, Mid RH

1шт.

40011595

1шт.

10

NSS

NOT SOLD SEPARAT

FRAME, Upper

1шт.

40011418

1шт.

11

MT40029406

BOLT,M14 x 2 x 80mm L

Hex M14 x 2 x 80L

2шт.

12

MT40028160

WASHER,15mm ID x 24mm OD x 2.5mm Thk

Plain O.D. 24 x 1 I.D. 15 x 2.5T

2шт.

13

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring O.D. 24.5 x I.D. 14.2 x 3.5T

2шт.

14

MT40028727

NUT,Hex, M14 x 2

Hex M14

2шт.

15

MT40233112

PIN,14mm ID x 80mm L

2шт.

16

MT40027824

GROMMET,24.5mm OD x 14mm ID x 13mm Thk

Lower, O.D. 24.5 x I.D. 14 x 13T

2шт.

17

MT40029491

BOLT,Hex, M6 x 1.0 x 20mm

Hex, M6 x 1 x 20L

2шт.

18

MT40028719

NUT,Hex, M6 x 1.0

M6

2шт.

19

MT40028983

BOLT,Hex, M12 x 1.75 x 45mm

Hex W/Washer M12 x 1.75 x 45L

8шт.

20

MT40029397

BOLT,Hex, M14 x 2 x 40mm

Hex, M14 x 2 x 40L

8шт.

21

MT40029401

BOLT,Hex, M14 x 2 x 50mm

Hex, M14 x 2 x 50L

6шт.

22

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring O.D. 24.5 x I.D. 14.2 x 3.5T

14шт.
