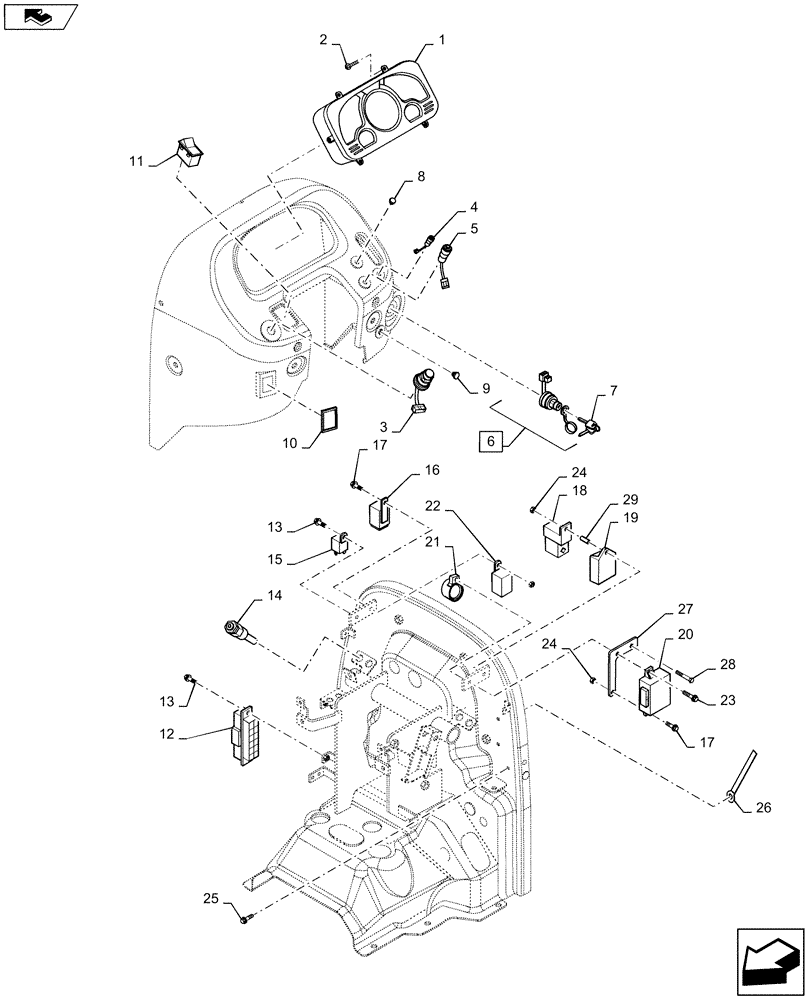

Запчасти Case IH FARMALL 35B (55.418.02) - INSTRUMENT PANEL, SWITCHES & RELAYS - HST (55) - ELECTRICAL SYSTEMS

1

MT40007026

INSTRUMENT CLUSTER

Digital

1шт.

2

MT40029025

SCREW,M4 x 1.41 x 16mm L

M4 x 1.41 x 16L

6шт.

3

MT40194373

SWITCH

SWITCH, COMBINATON

1шт.

4

MT40234126

SWITCH

Horn

4шт.

5

MT40185307

SWITCH

PTO Selector 12V/10A/130W

1шт.

6

MT40007119

IGNITION SWITCH

12V/30A/50A

1шт.

7

MT40012655

KEY

KEY, Start

1шт.

8

MT40012843

CAP

O.D. 9 x 2T

1шт.

9

MT40007355

CAP

Rubber D12.5 x 4T

1шт.

10

MT40007452

GROMMET

SWITCH HOLE

1шт.

11

MT40050179

CRUISE ON/OFF SWITCH

Cruise

1шт.

12

MT40235425

FUSE BOX

1шт.

13

MT40028988

BOLT,M100 x 1.25 x 35mm L

Hex, W/Washer M10 X 1.25 X 35L

3шт.

14

MT40012887

MFD SWITCH,12V, 5A

12V/5A

2шт.

15

MT40007122

RELAY,12V/40A/30A

Engine Stop 12V/40A/30A

1шт.

16

MT40007175

RELAY

Starter 12V/20A

1шт.

17

MT40029001

BOLT,M6 x 1.0 x 25mm

Hex W/Washer M6 x 1 x 25L

2шт.

18

MT40007191

RELAY,12V, 70A

Glow 12V/70A

1шт.

19

MT40196911

FLASHER UNIT

FLASHER UNIT ASAE

1шт.

20

MT40230107

RELAY

CONTROLLER

1шт.

21

MT40229786

ALARM,Buzzer

Park Brake

1шт.

22

MT40234130

RELAY

RELAY, Head Lamp

1шт.

23

MT40036250

BOLT,M6 x 1 x 35mm L

BOLT, Hex W/Washer M6 x 35L

1шт.

24

MT40029067

NUT,M6 x 1

Flange M6 x 1

4шт.

25

MT40028973

BOLT,Hex, M8 x 1.25 x 25mm

Hex W/Washer M8 x 1.25 x 25L

1шт.

26

MT40012733

CLAMP,10mm W x 140mm L

10w X 140L

2шт.

27

MT40233530

BRACKET

BRACKET, Controller

1шт.

28

MT40081285

BOLT

BOLT, Hex M6 x 55L

1шт.

29

MT40202536

SPACER,10mm OD x 7.6mm ID x 30mm L

SPACER, Relay O.D. 10.5 x I.D. 736 x 30L

1шт.
