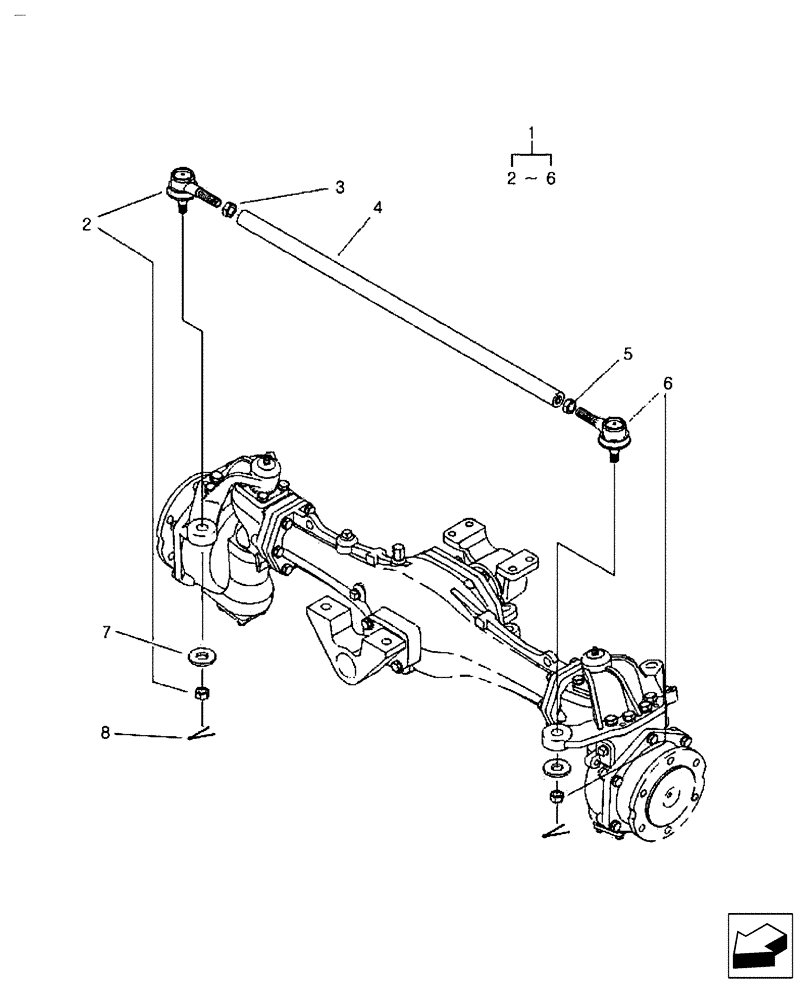

Запчасти Case IH FARMALL 35B (41.216.03) - TIE ROD (41) - STEERING

1

MT40217480

TIE-ROD,870mm - 880mm

Includes: Ref. 2-6

1шт.

2

MT40008102

END

RH

1шт.

3

MT40009543

NUT,Hex, M18 x 1.5

Hex M18 x 1.5

1шт.

4

MT40217481

PIPE

Tie Rod O.D. 21.7 x 3.2T

1шт.

5

MT40029053

NUT,Hex, M18 x 1.5

Hex M18 x 1.5

1шт.

6

MT40008103

END

LH

1шт.

7

MT40028204

WASHER,17mm ID x 40mm OD x 3mm

Plain O.D. 40 x I.D. 17 x 3T

2шт.

8

MT40029127

SPRING,40mm OD x 36mm L

Split

2шт.
