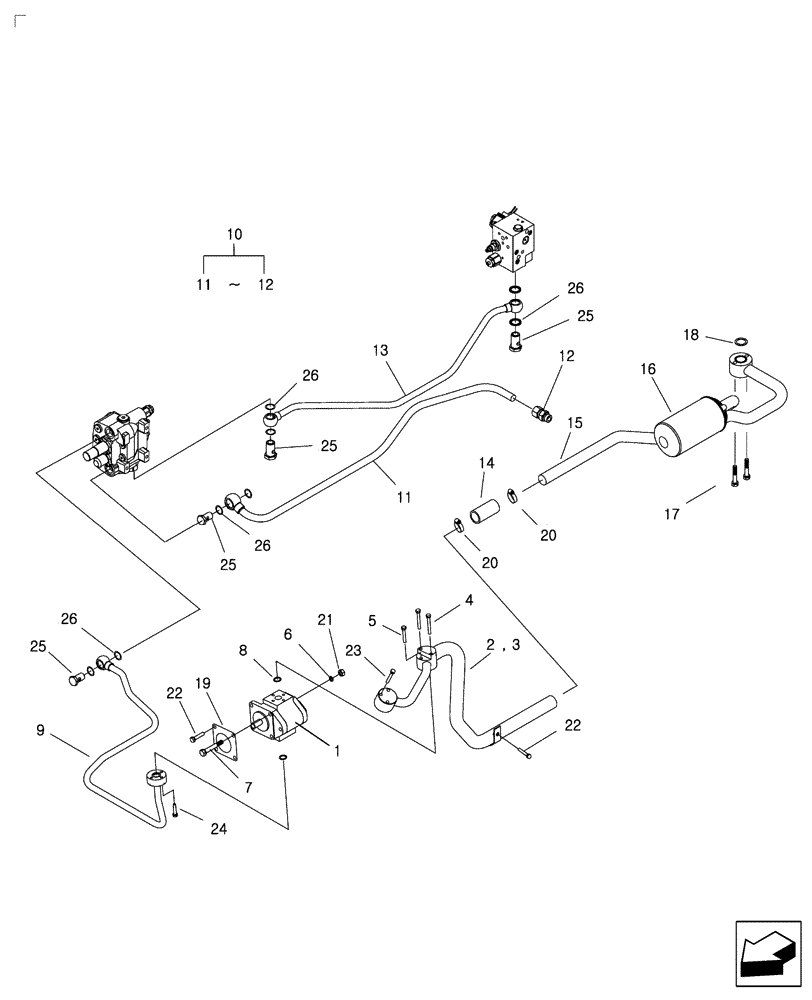

Запчасти Case IH FARMALL 35B (35.204.02) - HYDRAULIC LINES, FILTER & SUCTION FILTER (35) - HYDRAULIC SYSTEMS

1

MT40007618

HYDRAULIC PUMP

1шт.

2

MT40011020

PIPE

Front Suction, O.D. 20 X 0.9T - O.D. 31.8 x 1.6T

1шт.

3

NSS

NOT SOLD SEPARAT

1шт.

4

MT40028917

BOLT,Hex, M6 x 1 x 50mm

Hex, W/Washer M6 x 1 x 50L

2шт.

5

MT40028915

BOLT,Hex, M6 x 1.0 x 40mm

Hex, W/Washer M6 x 1 x 40L

1шт.

6

MT40029546

WASHER,8.20mm ID x 15.40mm OD x 2mm Thk

Spring, O.D. 15.4 x I.D. 8.2 x 2T

4шт.

7

MT40009554

BOLT,M8 x 1.25 x 150mm

Hex, M8 x 1.25 x 150L

2шт.

8

MT40029206

O-RING,2.40mm Thk x 17.80mm ID

D 17.8 x W 2.4

3шт.

9

MT40036305

PRESSURE PIPE

PIPE, Front Pressure

1шт.

10

MT40215852

PIPE

PIPE, Drain Includes: Ref. 11-12

1шт.

11

NSS

NOT SOLD SEPARAT

PIPE, Drain

1шт.

12

MT40010153

JOINT

3/8X15L

1шт.

13

MT40215854

PRESSURE PIPE

PIPE, M/Pressure

1шт.

14

MT40007509

HOSE

Suction O.D. 40 x I.D. 31 x 80L

1шт.

15

MT40011560

PIPE

R/Suction O.D. 31.8 x 1.6T

1шт.

16

MT40007638

HYDRAULIC OIL FILTER

1шт.

17

MT40028955

BOLT,Hex, M10 x 1.25 x 60mm

Hex, W/Washer M10 x 1.25 x 60L

2шт.

18

MT40029248

O-RING,2.0mm Thk x 29.5mm ID

D 29.5 x W2

1шт.

19

MT40006908

PACKING,51mm ID x 0.60mm Thk

Pump

1шт.

20

MT40012013

CLAMP,27mm - 50mm

Hose

2шт.

21

MT40029040

NUT,Hex, M8 x 1.25

Hex M8 x 1.25

4шт.

22

MT40028913

BOLT,M6 x 1 x30mm L

Hex, W/Washer M6 x 1 x 30L

3шт.

23

MT40028916

BOLT,Hex, M6 x 1.0 x 45mm

Hex, W/Washer M6 x 1 x 45L

3шт.

24

MT40028914

BOLT,Hex, M6 x 1 x 35mm

Hex, W/Washer M6 x 1 x 35L

3шт.

25

MT40010250

BOLT,Union 1/2" x 36mm L

Union

3шт.

26

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

Bonded, O.D. 21.2 x 1.5T

2шт.
