(35.120.05) - CHECK LINK - PIN & PLATE STYLE

Запчасти Case IH FARMALL 35B (35.120.05) - CHECK LINK - PIN & PLATE STYLE (35) - HYDRAULIC SYSTEMS

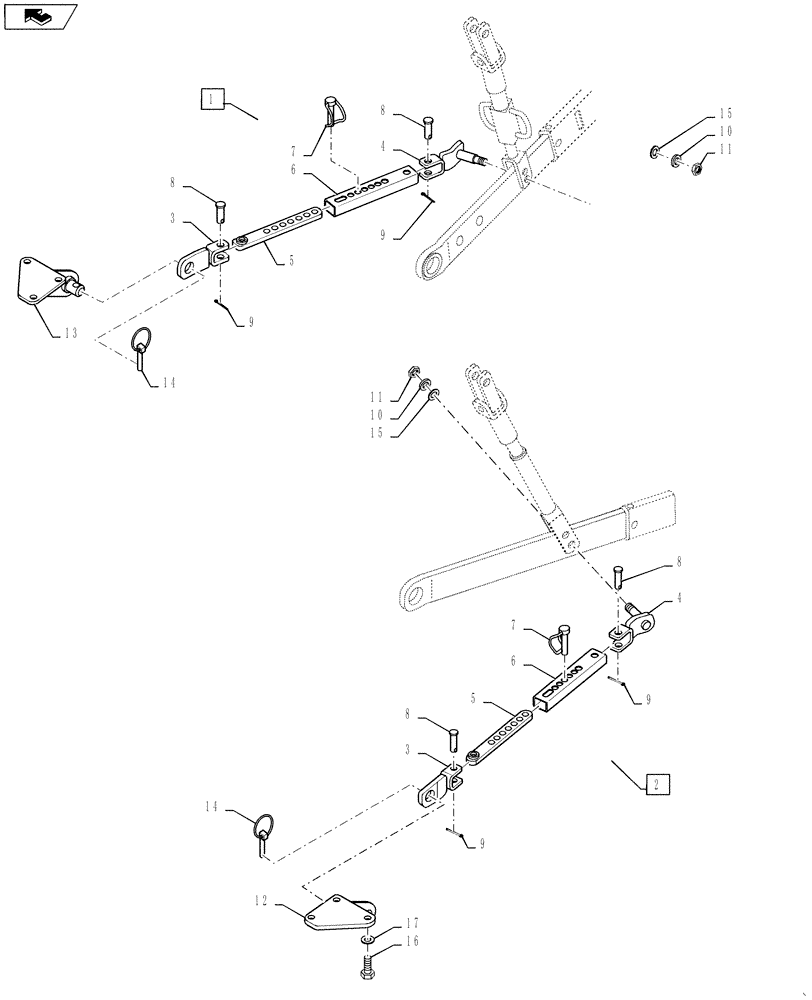

Схема запчастей Case IH FARMALL 35B - (35.120.05) - CHECK LINK - PIN & PLATE STYLE (35) - HYDRAULIC SYSTEMS
9
4
7
15
10
3
5
8
4
3
8
10
11
1
12
6
8
9
7
home
16
14
11
9
5
15
9
14
8
13
6
2
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40213521

STABILIZER

RH Includes: Ref. 3-9

1шт.

2

MT40213520

STABILIZER

LH Includes: Ref. 3-9

1шт.

3

MT40213187

LINK

FRONT

2шт.

4

NSS

NOT SOLD SEPARAT

LINK, REAR

2шт.

5

MT40213184

LINK,25mm x 12mm Thk

INNER 25 x 12T

2шт.

6

NSS

NOT SOLD SEPARAT

LINK, OUTER 4.5T

2шт.

7

MT40036096

PIN

PIN, LINK

2шт.

8

MT40036102

PIN,17mm OD x 40mm L

PIN, HEAD I.D. 12 x O.D. 17 x 40L

4шт.

9

MT40036103

PIN,4mm OD x 25mm L

PIN, SPLIT DIA 4.0 x 25L

4шт.

10

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring O.D. 24.5 x I.D. 14.2 x 3.5T

2шт.

11

MT40029051

NUT,Hex, M14 x 1.5

Hex Small M14 x 1.5

2шт.

12

MT40011608

BRACKET

Check Chain, LH

1шт.

13

MT40011609

BRACKET

Check Chain, RH

1шт.

14

MT40012410

PIN,11mm OD x 50mm L

Link O.D. 11 x 50.0L

2шт.

15

MT40028176

WASHER,M8 x 1.25mm x 30mm L

2шт.

16

MT40029397

BOLT,Hex, M14 x 2 x 40mm

M14 x 2 x 40L

8шт.

17

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

O.D. 24.5 x I.D. 14.2 x 3.5T

8шт.
