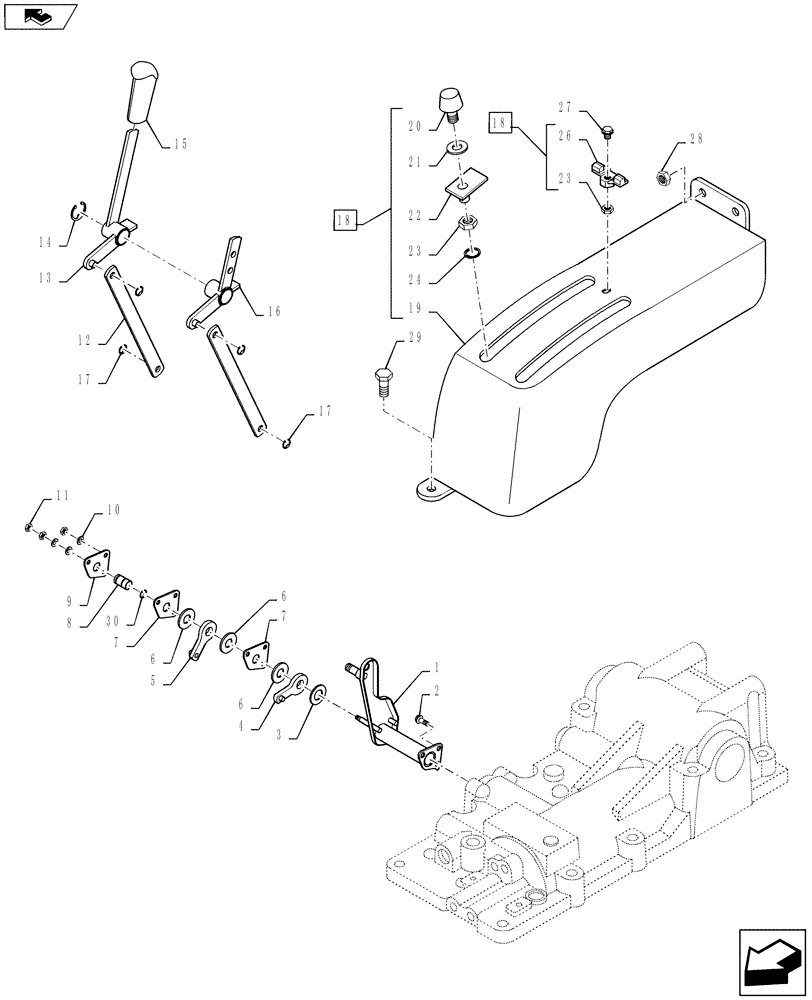

Запчасти Case IH FARMALL 35B (35.108.01) - HYDRAULIC CONTROL LEVER W/DRAFT (35) - HYDRAULIC SYSTEMS

1

MT40011035

BRACKET

Hydraulic Lever

1шт.

2

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

Hex W/Washer M10 x 1.25 x 20L

3шт.

3

MT40006943

PLATE,21mm ID x 40mm OD x 2mm Thk

Friction, L O.D. 40 x I.D. 21 x 2T

1шт.

4

MT40012164

ARM

Draft Lever, 8T

1шт.

5

MT40011926

ARM

Position Lever 8T

1шт.

6

MT40006942

PLATE,13mm ID x 40mm OD x 2mm Thk

Friction O.D. 40 x I.D. 13 x 2T

3шт.

7

MT40012316

PLATE,3.2mm Thk

Locking 3.2T

2шт.

8

MT40012375

SPRING,27mm OD x 23mm L

D6 x D27 x 23L

1шт.

9

MT40011868

COVER,3.2mm Thk

Spring 3.2T

1шт.

10

MT40029543

WASHER,6.10mm ID x 12.20mm OD x 1.50mm Thk

Spring O.D. 12.2 x I.D. 6.1 x 1.5T

3шт.

11

MT40028763

NUT,M6 x 1.0

Hex M5 x 1

3шт.

12

MT40009452

LINK,19mm x 4.5mm Thk x 187mm L

Hydraulic Lever 19 x 4.5 x 187L

2шт.

13

MT40011575

LEVER

Position

1шт.

14

MT40029322

SNAP RING,M15, Ext

1шт.

15

MT40008329

GRIP

Auxiliary Lever

1шт.

16

MT40232752

LEVER

Draft

1шт.

17

MT40029314

SNAP RING,M6

4шт.

18

0C

ORDER COMPONENTS

GUIDE, HYD Lever Includes: 19-26

1шт.

40235924

1шт.

19

MT40235620

LEVER GUIDE

HYD

1шт.

20

MT40196688

GRIP

Hydraulic Lever

1шт.

21

MT40243207

WASHER

Washer, T-Lock

1шт.

22

MT40008351

STOP DEVICE

Hydraulic Lever

1шт.

23

MT40028768

NUT,Hex, M8 x 1.25

Hex M8 x 1.25

2шт.

24

MT40029314

SNAP RING,M6

1шт.

25

MT40028973

BOLT,Hex, M8 x 1.25 x 25mm

Hex, W/Washer M8 x 1.25 x 25

1шт.

26

MT40008352

STOP DEVICE

Hydraulic Lever

1шт.

27

MT40008371

CAP

Bolt

1шт.

28

MT40029075

FLANGE NUT,Hex, M8 x 1.25

Flange M8 x 1.25

2шт.

29

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

Hex, W/Washer M8 x 1.25 x 20L

1шт.

30

MT40029259

SNAP RING,M12

1шт.
