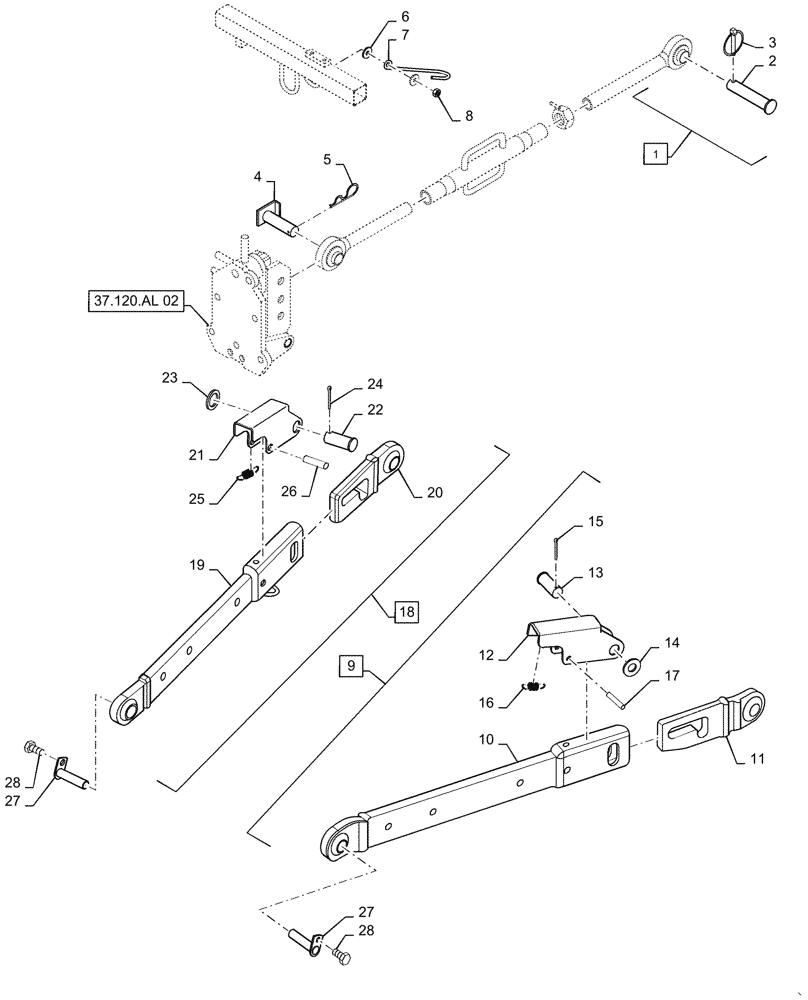

Запчасти Case IH FARMALL 35A (37.120.00[01]) - LINK ARM ASSY KIT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT40008084

TOP LINK

Assy, W/ Pin, Incl 2, 3

1шт.

2

MT40010207

PIN,19mm OD x 99mm L

Upper Link

1шт.

3

MT40012410

PIN,11mm OD x 50mm L

Link

1шт.

4

MT40012529

PIN,19mm OD 90mm L

Top Link Front

1шт.

5

MT40011979

PIN,20mm OD x 80mm L

1шт.

6

MT40028196

WASHER,8.4mm ID x 26mm OD x 2.5mm Thk

Plain

2шт.

7

MT40278138

HOOK

Top Link

1шт.

8

MT40012797

NUT,M8 x 1.25

Lock

1шт.

9

MT40251381

LOWER LINK

Assy, LH, Incl 10 - 17

1шт.

10

MT40251383

LOWER LINK

Lower Left

1шт.

11

MT40227146

LIFT LINK END ASSY

Lower Left

1шт.

12

MT40227147

COVER

Lower Link

1шт.

13

MT40227144

LOCK PIN

Lower

1шт.

14

MT40086650

WASHER,23mm OD x 3mm Thk

Plain

1шт.

15

MT40114756

COTTER PIN,M50 x 36mm L

1шт.

16

MT40227145

SPRING

Lower Link

1шт.

17

MT40116303

PIN,10mm OD x 50mm L

Spring

1шт.

18

MT40251380

LOWER LINK

Assy, RH, Incl 19 - 26

1шт.

19

MT40251382

LOWER LINK

Lower Right

1шт.

20

MT40228102

LIFT LINK END ASSY

Lower Right

1шт.

21

MT40227147

COVER

Lower Link

1шт.

22

MT40227144

LOCK PIN

Lower

1шт.

23

MT40086650

WASHER,23mm OD x 3mm Thk

Plain

1шт.

24

MT40114756

COTTER PIN,M50 x 36mm L

1шт.

25

MT40227145

SPRING

Lower Link

1шт.

26

MT40116303

PIN,10mm OD x 50mm L

Spring

1шт.

27

MT40011964

PIN,22mm OD x 88mm L

Lower Link

2шт.

28

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

2шт.
