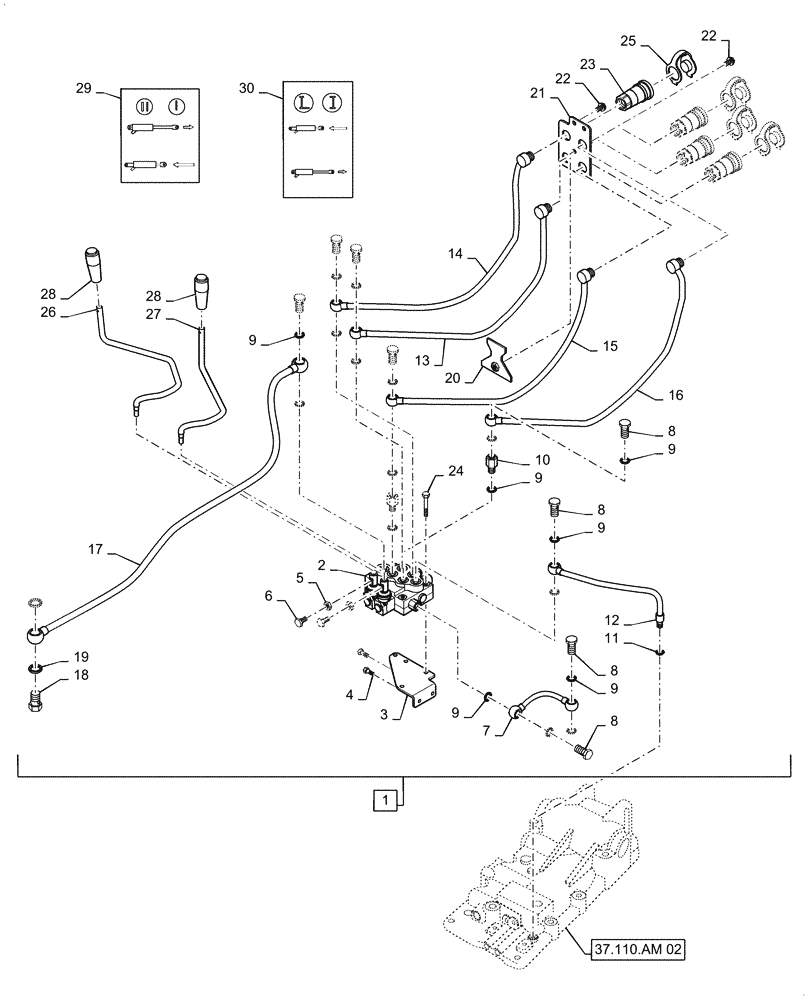

Запчасти Case IH FARMALL 35A (35.204.BE[12]) - REMOTE CONTROL VALVE KIT, 4-QC (35) - HYDRAULIC SYSTEMS

1

MT20139106

DIA KIT, TRACTOR

Incl 2 - 30

1шт.

2

MT40007594

VALVE

Remote Control

1шт.

3

MT40235346

BRACKET

Valve

1шт.

4

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

2шт.

5

MT40028769

NUT,Hex, M10 x 1.5

2шт.

6

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

2шт.

7

MT40235339

PIPE

Out

1шт.

8

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

8шт.

9

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

18шт.

10

MT40010251

HYD CONNECTOR,22mm ID x 3/8” OD x 11X40L

2шт.

11

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

1шт.

12

MT40235340

PIPE

1шт.

13

MT40250903

HYD TUBE

1шт.

14

MT40250904

HYD TUBE

1шт.

15

MT40250905

HYD TUBE

1шт.

16

MT40250906

HYD TUBE

1шт.

17

MT40325511

HYD TUBE

1шт.

18

MT40010250

BOLT,Union 1/2" x 36mm L

1шт.

19

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

2шт.

20

MT40235348

BRACKET

1шт.

21

MT40250910

BRACKET

1шт.

22

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

3шт.

23

MT40230238

COUPLING, QUICK, FEM,1/2"

4шт.

24

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

3шт.

25

MT40290328

CAP

4шт.

26

MT40292434

CONTROL LEVER

1шт.

27

MT40293633

CONTROL LEVER

1шт.

28

MT40008403

GRIP

AUX LEver

2шт.

29

MT40236925

DECAL

AUX Control

1шт.

30

MT40236923

DECAL,Aux Lever

AUX Lever

1шт.
