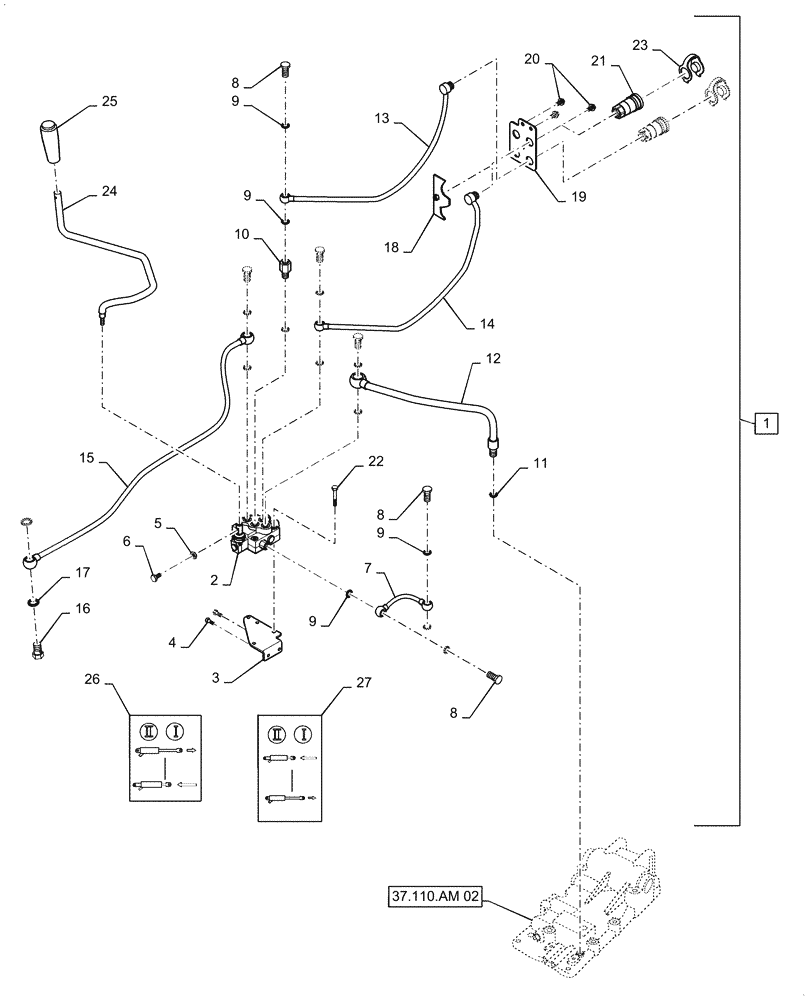

Запчасти Case IH FARMALL 35A (35.204.BE[11]) - REMOTE CONTROL VALVE KIT, 2-QC (35) - HYDRAULIC SYSTEMS

1

MT20139105

DIA KIT, TRACTOR

Incl 2 - 27

1шт.

2

MT40120523

REMOTE CONTROL VALVE

SD5/1, W/O R

1шт.

3

MT40235346

BRACKET

Valve

1шт.

4

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

2шт.

5

MT40028769

NUT,Hex, M10 x 1.5

M10 x 1.5

1шт.

6

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

M10 x 1.5 x 25 L

1шт.

7

MT40235339

PIPE

PRS Out

1шт.

8

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

6шт.

9

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

13шт.

10

MT40010251

HYD CONNECTOR,22mm ID x 3/8” OD x 11X40L

PF 3/8 x 22OD x 11ID

1шт.

11

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

1шт.

12

MT40235340

PIPE

Drain

1шт.

13

MT40250905

HYD TUBE

1шт.

14

MT40250906

HYD TUBE

1шт.

15

MT40325510

HYD TUBE

1шт.

16

MT40010250

BOLT,Union 1/2" x 36mm L

PF1 / 2 x 36 L

1шт.

17

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

OD 21.2mm x 1.5mm T

2шт.

18

MT40235345

BRACKET

1шт.

19

MT40250910

BRACKET

R/C Pipe

1шт.

20

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

3шт.

21

MT40230238

COUPLING, QUICK, FEM,1/2"

2шт.

22

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

3шт.

23

MT40290328

CAP

Coupler

2шт.

24

MT40292434

CONTROL LEVER

Valve

1шт.

25

MT40008403

GRIP

AUX Lever

1шт.

26

MT40236925

DECAL

AUX Control

1шт.

27

MT40236923

DECAL,Aux Lever

AUX Lever

1шт.
