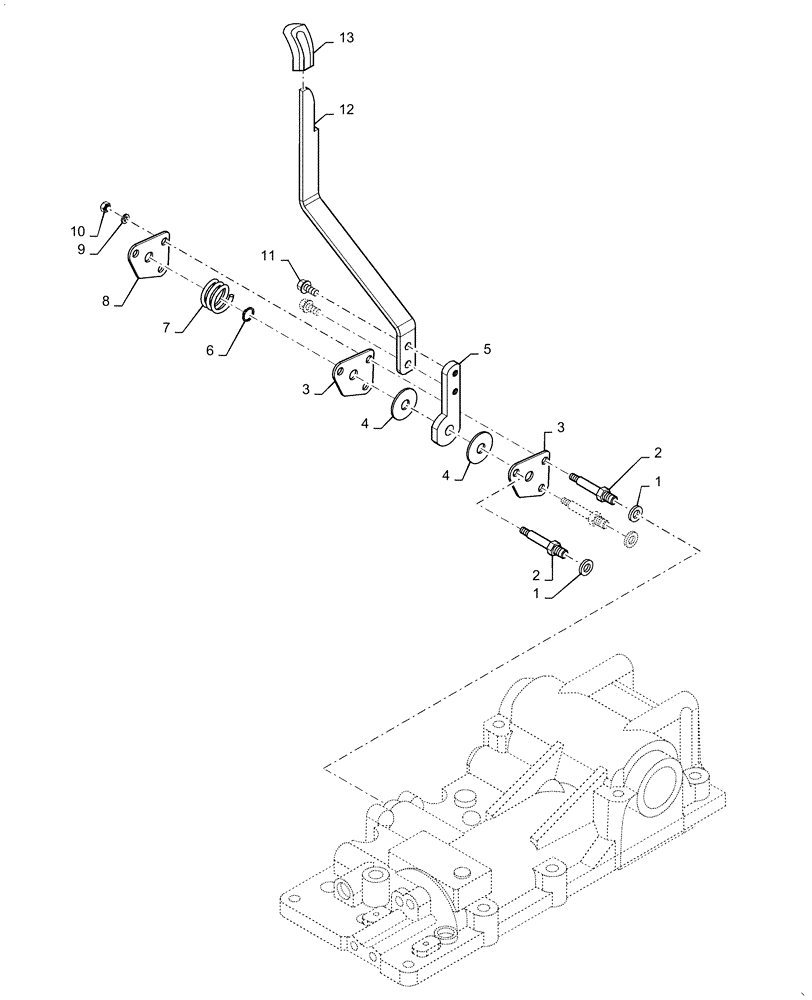

Запчасти Case IH FARMALL 35A (35.128.AE[01]) - HYDRAULIC CONTROL LEVER (35) - HYDRAULIC SYSTEMS

1

MT40029549

WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk

3шт.

2

MT40228558

BOLT

Lever Support

3шт.

3

MT40228557

LOCKING PLATE

2шт.

4

MT40006942

PLATE,13mm ID x 40mm OD x 2mm Thk

Friction

2шт.

5

MT40228560

ARM

Position Lever

1шт.

6

MT40029259

SNAP RING,M12

1шт.

7

MT40012375

SPRING,27mm OD x 23mm L

1шт.

8

MT40228559

COVER

Spring

1шт.

9

MT40029543

WASHER,6.10mm ID x 12.20mm OD x 1.50mm Thk

3шт.

10

MT40028763

NUT,M6 x 1.0

3шт.

11

MT40028971

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

12

MT40228561

LEVER

Position

1шт.

13

MT40008377

KNOB

Sub Shift

1шт.
