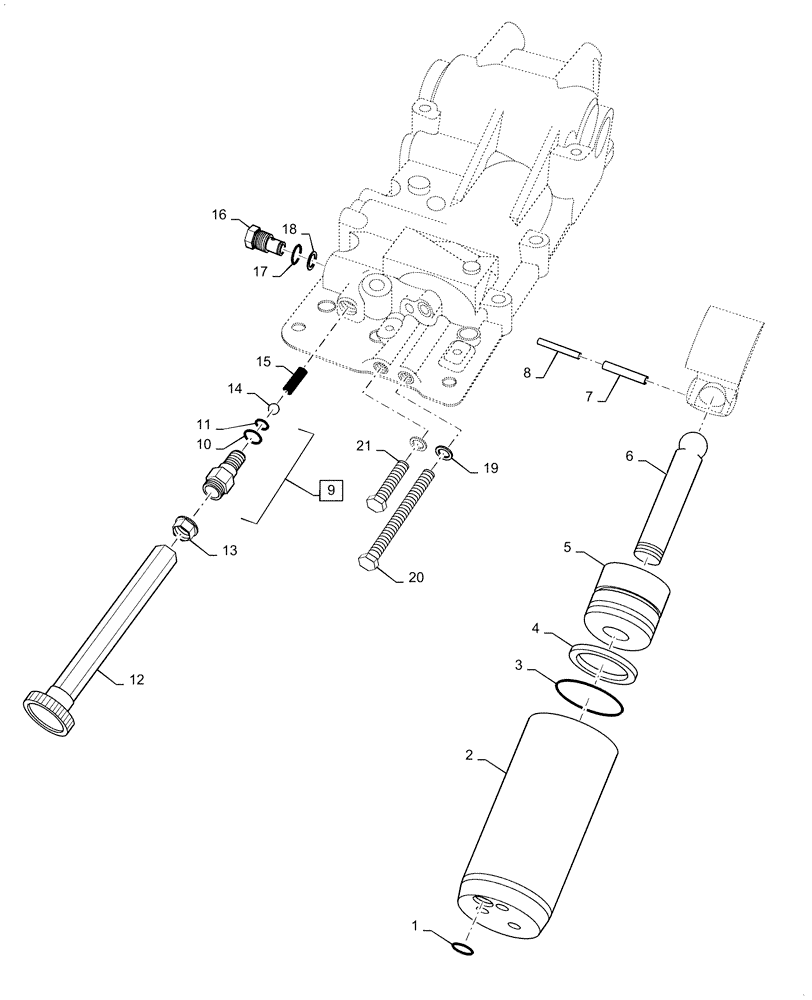

Запчасти Case IH FARMALL 35A (35.116.AH[01]) - HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

MT40029202

O-RING,2.4mm Thk x 13.8mm ID

1шт.

2

MT40011327

CYLINDER,70mm Bore Dia

1шт.

3

MT40007429

O-RING,71mm ID x 59.6mm OD x 5.7mm L

2шт.

4

MT40008346

BACK-UP RING,60mm ID x 70mm OD x 3mm Thk

2шт.

5

MT40009908

PISTON,70mm ID x 60mm L

Hyd

1шт.

6

MT40010017

PISTON ROD,183.5mm L

1шт.

7

MT40029181

PIN,8mm OD x 55mm L

Spring

1шт.

8

MT40029166

PIN,5mm OD x 55mm L

Spring

1шт.

9

MT40008146

VALVE

Regulator, Incl 10 - 11

1шт.

10

MT40029202

O-RING,2.4mm Thk x 13.8mm ID

1шт.

11

MT40029195

O-RING,1.9mm Thk x 9.8mm ID

1шт.

12

MT40234884

KNOB

Speed Valve

1шт.

13

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

14

MT40010340

BALL

Steel

1шт.

15

MT40012356

SPRING,8.6mm OD x 31.5mm L

Locking Valve

1шт.

16

MT40008161

VALVE

Safety

1шт.

17

MT40029206

O-RING,2.40mm Thk x 17.80mm ID

1шт.

18

MT40012093

SEAL,10.5mm ID x 18mm OD x 1.0 Thk

Plug

1шт.

19

MT40273321

SEAL

Bonded

3шт.

20

MT40272750

BOLT,M10 x 1.25 x 120mm L

2шт.

21

MT40273203

BOLT,M10 x 1.25 x 120mm L

1шт.

22

MT40009179

POWER ARM

1шт.
