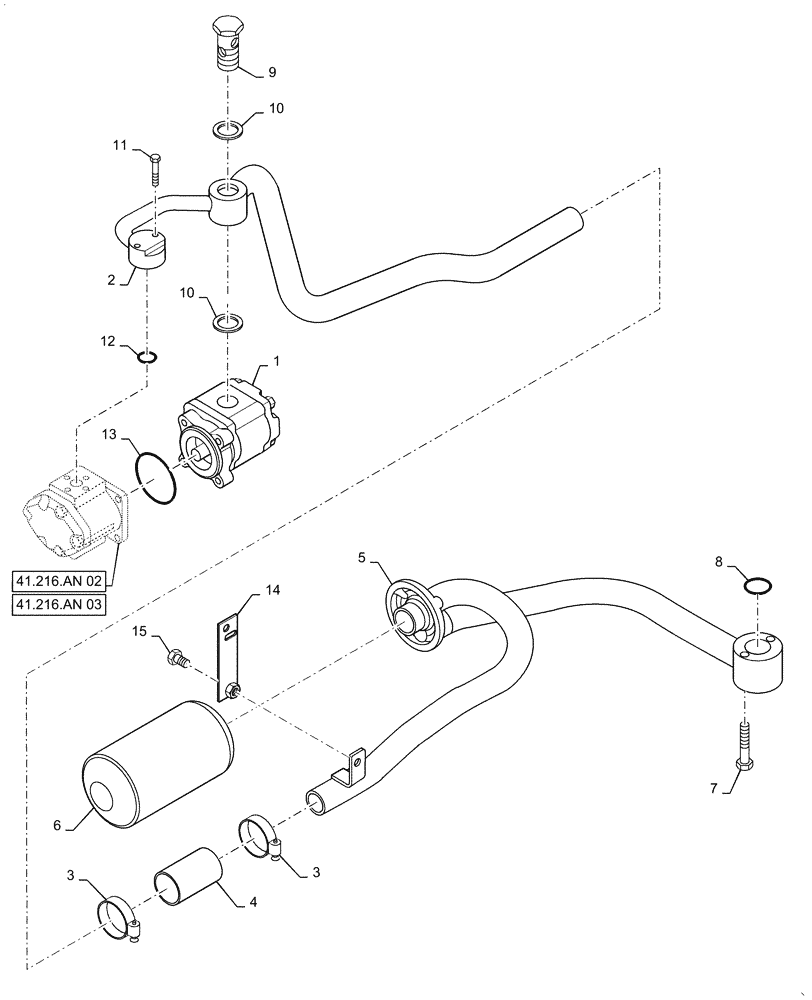

Запчасти Case IH FARMALL 35A (35.100.AH[01]) - HYDRAULIC SUCTION LINE (35) - HYDRAULIC SYSTEMS

1

MT40265897

HYDRAULIC PUMP

Main

1шт.

2

MT40266749

SUCTION PIPE

1шт.

3

MT40012013

CLAMP,27mm - 50mm

Hose

2шт.

4

MT40007510

HOSE,47mm OD x 6mm Thk

Hyd Suction

1шт.

5

MT40209962

SUCTION PIPE

1шт.

6

MT40007638

HYDRAULIC OIL FILTER

1шт.

7

MT40028956

BOLT,Hex, M10 x 1.25 x 70mm

2шт.

8

MT40029248

O-RING,2.0mm Thk x 29.5mm ID

1шт.

9

MT40010303

BOLT,Eye, 5.9mm L

1шт.

10

MT40012103

COPPER WASHER,26.7mm ID x 36mm OD x 1.5mm Thk

2шт.

11

MT40028915

BOLT,Hex, M6 x 1.0 x 40mm

2шт.

12

MT40029206

O-RING,2.40mm Thk x 17.80mm ID

1шт.

13

MT40029227

O-RING,3.1mm Thk x 69.4mm ID

1шт.

14

MT40286470

BRACKET

Suction Clamp

1шт.

15

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

1шт.
