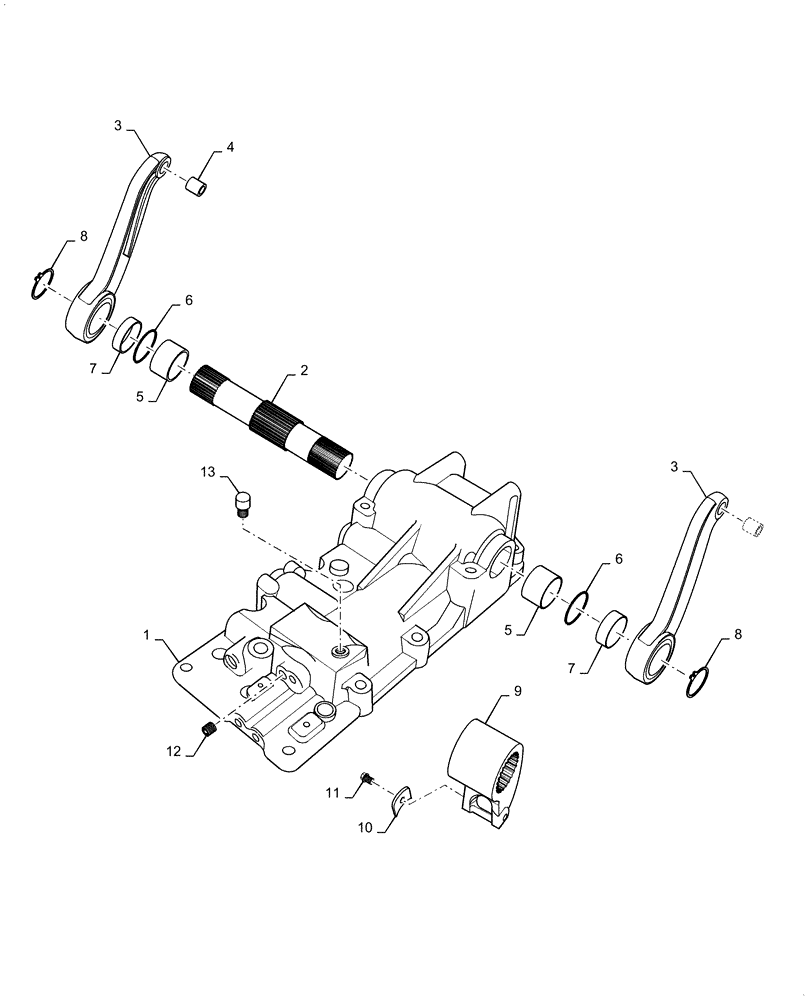

Запчасти Case IH FARMALL 35A (35.100.AA[02]) - HYDRAULIC HOUSING (35) - HYDRAULIC SYSTEMS

1

MT40228554

HOUSING

Hydraulic

1шт.

2

MT40008963

SHAFT,303mm L

Hydraulic Lift

1шт.

3

MT40009177

ARM

Lift

2шт.

4

MT40009651

BUSHING,19mm ID x 22mm OD x 25mm L

Lift Arm

2шт.

5

MT40009718

BUSHING,45mm ID x 55mm OD x 30mm L

Lift Shaft

2шт.

6

MT40029223

O-RING,3.1mm Thk x 44.4mm ID

2шт.

7

MT40008343

COLLAR,45mm ID x 50mm OD x 14 Thk

2шт.

8

MT40029278

RING,M42

Snap

2шт.

9

MT40009179

POWER ARM

2шт.

10

MT40011870

PLATE,3.2mm Thk

Lock, 3.2mm Thk

1шт.

11

MT40028919

BOLT,Hex, M8 x 1.25 x 16mm, W/ Wshr

1шт.

12

MT40012845

PLUG,Tpr, 1/4" PT

1шт.

13

MT40009792

PLUG,9.50mm OD x 7.50mm L

1шт.
