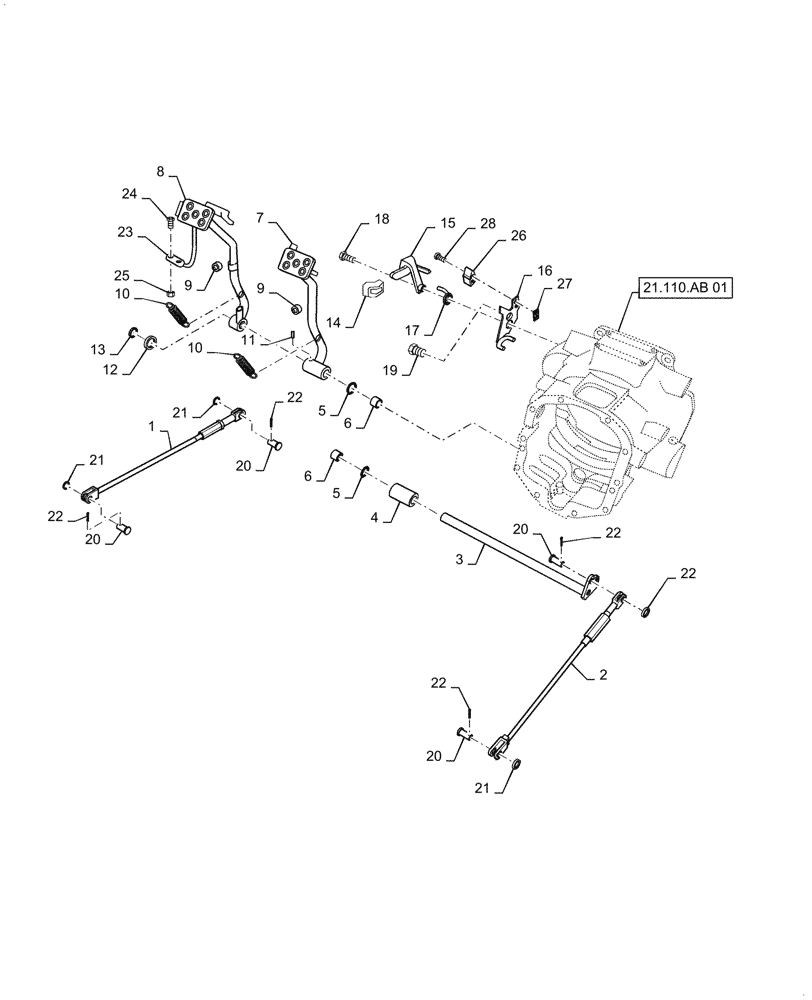

Запчасти Case IH FARMALL 35A (33.120.AG[02]) - BRAKE PEDAL, HST (33) - BRAKES & CONTROLS

1

MT40013034

ROD,615mm L

Brake, HST

1шт.

2

MT40245212

ROD

Brake, HST

1шт.

3

MT40245213

SHAFT

Brake, HST

1шт.

4

MT40010069

SPACER,25mm ID x 45mm OD x 74mm L

1шт.

5

MT40029211

O-RING,3.50mm Thk x 24.70mm ID

2шт.

6

MT40009874

BUSHING

2шт.

7

MT40279726

PEDAL

Brake, RH

1шт.

Rubber Cover, MT40232475

1шт.

8

MT40232864

PEDAL

Brake, LH

1шт.

Rubber Cover, MT40232475

1шт.

9

MT40007478

RUBBER SLEEVE,M8 x 1.25 x 20mm L

M8 x 1.25 x 20.0mm L

2шт.

10

MT40011960

SPRING,18mm OD x 115mm L

2шт.

11

MT40029179

PIN,Spring, M8 x 40mm L

1шт.

12

MT40028184

WASHER,25mm ID x 44mm OD x 4mm Thk

1шт.

13

MT40029271

SNAP RING,M25

1шт.

14

MT40279699

KNOB

Park Brake

1шт.

15

MT40274861

BRAKE LEVER

Ratchet

1шт.

16

MT40274868

BRACKET

Brake

1шт.

17

MT40245217

SPRING

Parking

1шт.

18

MT40028988

BOLT,M100 x 1.25 x 35mm L

1шт.

19

MT40028986

BOLT,Hex, M10 x 1.25 x 25mm

1шт.

20

MT40009617

PIN,10mm ID x 14mm OD x 26mm L

4шт.

21

MT40028171

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

22

MT40029121

PIN,25mm OD x 20mm L

4шт.

23

MT40228564

SWITCH

Proximity

1шт.

24

MT40094801

BOLT,M5 x .8 x 30mm L

2шт.

25

MT40029072

FLANGE NUT,M5 x 0.8

2шт.

26

MT40007150

MFD SWITCH,125VAC/12A

Neutral

1шт.

27

MT40012510

PLATE

Clamp, Switch

1шт.

28

MT40028709

SCREW,M4 x 0.7 x 30mm

2шт.
