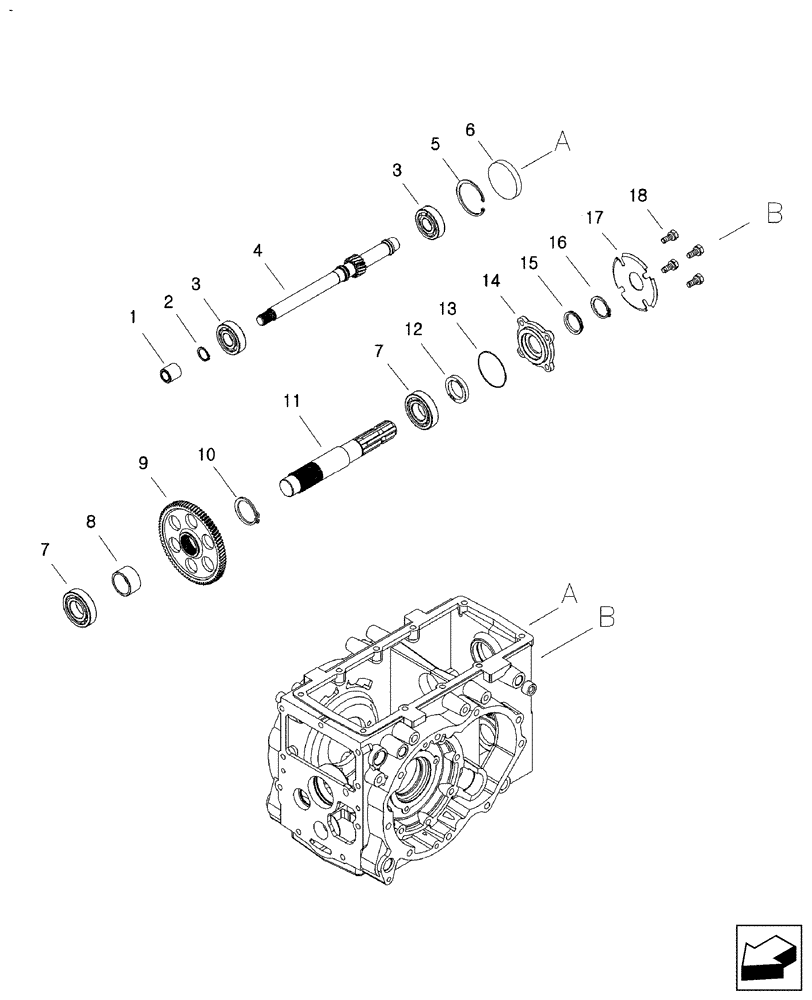

Запчасти Case IH FARMALL 35A (31.201.AG[02]) - PTO DRIVE SHAFT (31) - IMPLEMENT POWER TAKE OFF

1

MT40009662

JOINT,28mm OD x 17.5mm ID x 29L

O.D. 28 X I.D. 17.5 x 29

1шт.

2

MT40029265

SNAP RING,M20

1шт.

3

MT40012717

BALL BEARING

#63050H

1шт.

4

MT40009106

SHAFT,39.2mm OD x 354L

PTO Drive O.D. 39.2 x 354

1шт.

5

MT40029299

SNAP RING,M62

1шт.

6

MT40007516

CAP,62mm OD x 10mm L

Drive Shaft O.D. 62 x 10

1шт.

7

MT40012709

BALL BEARING

#62070

2шт.

8

MT40010076

SPACER,48.5mm OD x 40mm ID x 27mm L

O.D. 48.5 x I.D. 40 x 27

1шт.

9

MT40009076

GEAR

O.D. 165 x I.D. 37.5 x 14

1шт.

10

MT40029277

SNAP RING,M40

1шт.

11

MT40009111

SHAFT,40mm OD x 276L

PTO O.D. 40 x 276

1шт.

12

MT40012693

OIL SEAL

#1353

1шт.

13

MT40029254

O-RING,2 Thk x 69.5mm ID

1шт.

14

MT40009843

COVER

PTO Shaft

1шт.

15

MT40012824

SEAL,37mm ID x 42mm OD, 7.50mm Thk

1шт.

16

MT40029275

SNAP RING,M35

1шт.

17

MT40011812

GUIDE,1.60mm Thk

PTO Cover

1шт.

18

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

4шт.

19

MT40012715

BALL BEARING

#63050

1шт.
